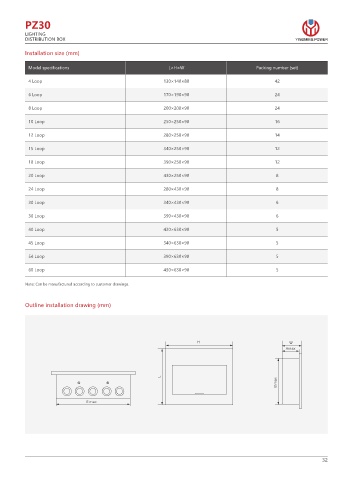

P. 39
PZ30
LIGHTING
DISTRIBUTION BOX YINGMING POWER
Installation size (mm)
Model specifications L×H×W Packing number (set)
4 Loop 130×140×80 42
6 Loop 170×190×90 24
8 Loop 200×200×90 24
10 Loop 250×250×90 16
12 Loop 280×250×90 14
15 Loop 340×250×90 12
18 Loop 390×250×90 12
20 Loop 430×250×90 8
24 Loop 280×430×90 8
30 Loop 340×430×90 6
36 Loop 390×430×90 6
40 Loop 430×630×90 5
45 Loop 340×630×90 5
54 Loop 390×630×90 5
60 Loop 430×630×90 5
Note: Can be manufactured according to customer drawings.
Outline installation drawing (mm)
) 8
"NBY
-
# NBY
&NBY
32
