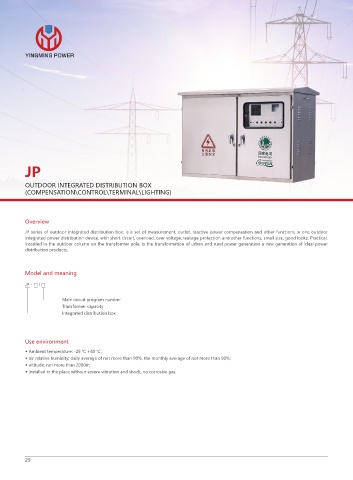

YINGMING POWER





















          JP


          OUTDOOR INTEGRATED DISTRIBUTION BOX
          (COMPENSATION\CONTROL\TERMINAL\LIGHTING)




          Overview
          JP series of outdoor integrated distribution box, is a set of measurement, outlet, reactive power compensation and other functions in one outdoor
          integrated power distribution device, with short circuit, overload, over voltage, leakage protection and other functions, small size, good looks, Practical,
          installed in the outdoor column on the transformer pole, is the transformation of urban and rural power generation a new generation of ideal power
          distribution products.



          Model and meaning
          JP - □ / □

                      Main circuit program number
                      Transformer capacity
                      Integrated distribution box




          Use environment
          ◆ Ambient temperature: -25 ℃ +40 ℃ ;
          ◆ air relative humidity: daily average of not more than 90%, the monthly average of not more than 90%;
          ◆ altitude: not more than 2000m;
          ◆ installed in the place without severe vibration and shock, no corrosive gas.
