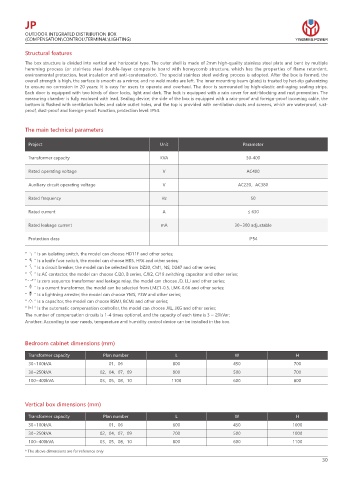

JP
          OUTDOOR INTEGRATED DISTRIBUTION BOX
          (COMPENSATION\CONTROL\TERMINAL\LIGHTING)                                                   YINGMING POWER
          Structural features

          The box structure is divided into vertical and horizontal type. The outer shell is made of 2mm high-quality stainless steel plate and bent by multiple
          hemming process (or stainless steel double-layer composite board with honeycomb structure, which has the properties of flame retardant,
          environmental protection, heat insulation and anti-condensation). The special stainless steel welding process is adopted. After the box is formed, the
          overall strength is high, the surface is smooth as a mirror, and no weld marks are left. The inner mounting beam (plate) is treated by hot-dip galvanizing
          to ensure no corrosion in 20 years; It is easy for users to operate and overhaul. The door is surrounded by high-elastic anti-aging sealing strips.
          Each door is equipped with two kinds of door locks, light and dark. The lock is equipped with a rain cover for anti-blocking and rust prevention. The
          measuring chamber is fully enclosed with lead. Sealing device; the side of the box is equipped with a rain-proof and foreign-proof incoming cable, the
          bottom is flushed with ventilation holes and cable outlet holes, and the top is provided with ventilation ducts and screens, which are waterproof, rust-
          proof, dust-proof and foreign-proof. Function, protection level: IP54.

          The main technical parameters


           Project                                     Unit                        Parameter

           Transformer capacity                        KVA                          30-400

           Rated operating voltage                      V                           AC400
           Auxiliary circuit operating voltage          V                        AC220,AC380

           Rated frequency                             Hz                             50

           Rated current                                A                           ≤ 630

           Rated leakage current                       mA                       30~300 adjustable

           Protection class                                                          IP54

          "      " Is an isolating switch, the model can choose HD11F and other series;
          "      " Is a knife fuse switch, the model can choose HR5, HR6 and other series;
          "      " Is a circuit breaker, the model can be selected from DZ20, CM1, NS, D247 and other series;
          "      " Is AC contactor, the model can choose CJ20, B series, CJX2, CJ19 switching capacitor and other series;
          "      " Is zero sequence transformer and leakage relay, the model can choose JD, LLJ and other series;
          "      " Is a current transformer, the model can be selected from LMZ1-0.5, LMK-0.66 and other series;
          "      " Is a lightning arrester, the model can choose YMS, Y3W and other series;
          "      " Is a capacitor, the model can choose BSMJ, BCMJ and other series;
          "      " Is the automatic compensation controller, the model can choose JKL, JKG and other series;
          The number of compensation circuits is 1-4 times optional, and the capacity of each time is 3 ~ 20kVar;
          Another: According to user needs, temperature and humidity control device can be installed in the box.



          Bedroom cabinet dimensions (mm)
           Transformer capacity     Plan number             L                   W                    H
           30~100kVA                  01、06                800                  450                 700
           30~250kVA               02、04、07、09             900                  500                 700
           100~400kVA              03、05、08、10             1100                 600                 800


          Vertical box dimensions (mm)

           Transformer capacity     Plan number             L                   W                    H
           30~100kVA                  01、06                600                  450                 1000
           30~250kVA               02、04、07、09             700                  500                 1000
           100~400kVA              03、05、08、10             800                  600                 1100
          * The above dimensions are for reference only
