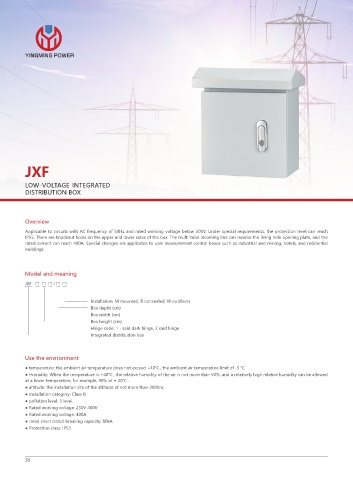

YINGMING POWER

JXF

LOW-VOLTAGE INTEGRATED
DISTRIBUTION BOX

Overview
Applicable to circuits with AC frequency of 50Hz and rated working voltage below 500V. Under special requirements, the protection level can reach
IP55. There are knockout holes on the upper and lower sides of the box. The multi-tube incoming line can reserve the living hole opening plate, and the
rated current can reach 400A. Special changes are applicable to user measurement control boxes such as industrial and mining, hotels, and residential
buildings.

Model and meaning
JXF □ □ □ / □ □

Installation: M mounted, R concealed, W outdoors
Box depth (cm)
Box width (cm)
Box height (cm)
Hinge code: 1 - said dark hinge, 2 said hinge
Integrated distribution box

Use the environment
● temperature: the ambient air temperature does not exceed +40℃ , the ambient air temperature limit of -5 ℃
● Humidity: When the temperature is +40℃ , the relative humidity of the air is not more than 50%, and a relatively high relative humidity can be allowed
at a lower temperature, for example, 90% at + 20℃ .
● altitude: the installation site of the altitude of not more than 2000m;
● Installation category: Class II;
● pollution level: 3 level.
● Rated working voltage: 230V 400V
● Rated working voltage: 400A
● rated short circuit breaking capacity: 80kA
● Protection class: IP55
