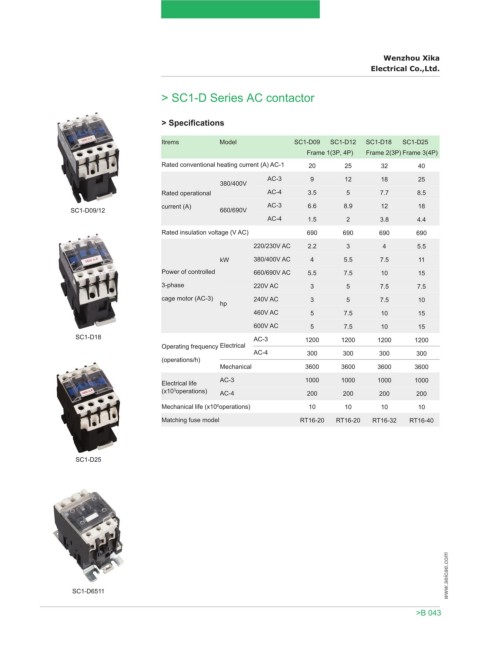

> SC1-D Series AC contactor

> Specifications

Itrems Model SC1-D09 SC1-D12 SC1-D18 SC1-D25
Frame 1(3P, 4P) Frame 2(3P) Frame 3(4P)
Rated conventional heating current (A) AC-1 20 25 32 40
AC-3 9 12 18 25
380/400V
Rated operational AC-4 3.5 5 7.7 8.5
current (A) AC-3 6.6 8.9 12 18
SC1-D09/12 660/690V
AC-4 1.5 2 3.8 4.4
Rated insulation voltage (V AC) 690 690 690 690
220/230V AC 2.2 3 4 5.5

kW 380/400V AC 4 5.5 7.5 11
Power of controlled 660/690V AC 5.5 7.5 10 15
3-phase 220V AC 3 5 7.5 7.5
cage motor (AC-3) 240V AC 3 5 7.5 10
hp
460V AC 5 7.5 10 15
600V AC 5 7.5 10 15
SC1-D18 AC-3 1200 1200 1200 1200
Operating frequency Electrical
AC-4 300 300 300 300
(operations/h)
Mechanical 3600 3600 3600 3600
Electrical life AC-3 1000 1000 1000 1000
(x10 operations) AC-4 200 200 200 200
3
Mechanical life (x10 operations) 10 10 10 10
6
Matching fuse model RT16-20 RT16-20 RT16-32 RT16-40

SC1-D25

www.seicae.com

SC1-D6511
