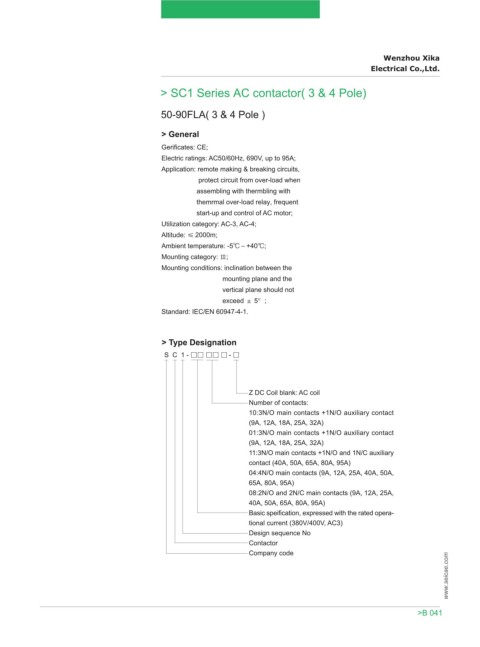

> SC1 Series AC contactor( 3 & 4 Pole)

50-90FLA( 3 & 4 Pole )

> General

Gerificates: CE;
Electric ratings: AC50/60Hz, 690V, up to 95A;
Application: remote making & breaking circuits,
protect circuit from over-load when
assembling with thermbling with
themrmal over-load relay, frequent
start-up and control of AC motor;
Utilization category: AC-3, AC-4;
Altitude: 2000m;
Ambient temperature: -5 +40 ;
Mounting category: ;
Mounting conditions: inclination between the
mounting plane and the
vertical plane should not
exceed 5 ;
Standard: IEC/EN 60947-4-1.

> Type Designation
S C 1 - -

Z DC Coil blank: AC coil
Number of contacts:
10:3N/O main contacts +1N/O auxiliary contact
(9A, 12A, 18A, 25A, 32A)
01:3N/O main contacts +1N/O auxiliary contact
(9A, 12A, 18A, 25A, 32A)
11:3N/O main contacts +1N/O and 1N/C auxiliary
contact (40A, 50A, 65A, 80A, 95A)
04:4N/O main contacts (9A, 12A, 25A, 40A, 50A,
65A, 80A, 95A)
08:2N/O and 2N/C main contacts (9A, 12A, 25A,
40A, 50A, 65A, 80A, 95A)
Basic speification, expressed with the rated opera-
tional current (380V/400V, AC3)
Design sequence No
Contactor
Company code
www.seicae.com

>B 041
