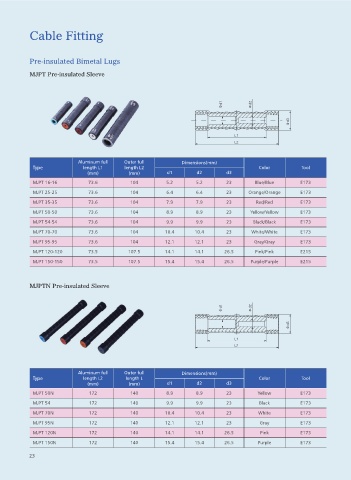

Cable Fitting

Pre-insulated Bimetal Lugs

MJPT Pre-insulated Sleeve

ŸE ŸE

ŸE

-
-

Aluminum full Outer full Dimensions(mm)
Type length L1 length L2 Color Tool
(mm) (mm) d1 d2 d3
MJPT 16-16 73.6 104 5.2 5.2 23 Blue/Blue E173

MJPT 25-25 73.6 104 6.4 6.4 23 Orange/Orange E173
MJPT 35-35 73.6 104 7.9 7.9 23 Red/Red E173
MJPT 50-50 73.6 104 8.9 8.9 23 Yellow/Yellow E173
MJPT 54-54 73.6 104 9.9 9.9 23 Black/Black E173
MJPT 70-70 73.6 104 10.4 10.4 23 White/White E173
MJPT 95-95 73.6 104 12.1 12.1 23 Gray/Gray E173

MJPT 120-120 73.5 107.5 14.1 14.1 26.5 Pink/Pink E215
MJPT 150-150 73.5 107.5 15.4 15.4 26.5 Purple/Purple E215

MJPTN Pre-insulated Sleeve

ŸE ŸE

ŸE

-
-

Aluminum full Outer full Dimensions(mm)
Type length L2 length L Color Tool
(mm) (mm) d1 d2 d3
MJPT 50N 172 140 8.9 8.9 23 Yellow E173
MJPT 54 172 140 9.9 9.9 23 Black E173
MJPT 70N 172 140 10.4 10.4 23 White E173
MJPT 95N 172 140 12.1 12.1 23 Gray E173
MJPT 120N 172 140 14.1 14.1 26.5 Pink E173
MJPT 150N 172 140 15.4 15.4 26.5 Purple E173
