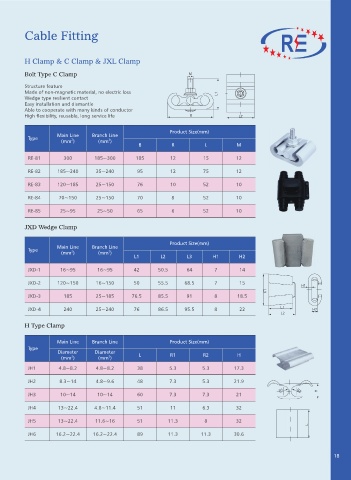

Cable Fitting

H Clamp & C Clamp & JXL Clamp

Bolt Type C Clamp .

Structure feature
Made of non-magnetic material, no electric loss -
Wedge type resilient contact
Easy installation and dismantle
Able to cooperate with many kinds of conductor
High flexibility, reusable, long service life # -

Product Size(mm)
Main Line Branch Line
Type
(mm ) (mm )
2
2
B R L M
RE-81 300 185~300 105 12 15 12
RE-82 185~240 35~240 95 12 75 12

RE-83 120~185 25~150 76 10 52 10

RE-84 70~150 25~150 70 8 52 10

RE-85 25~95 25~50 65 6 52 10

JXD Wedge Clamp

Product Size(mm)
Main Line Branch Line
Type
2
(mm ) (mm )
2
L1 L2 L3 H1 H2
JXD-1 16~95 16~95 42 50.5 64 7 14
JXD-2 120~150 16~150 50 55.5 68.5 7 15
)
JXD-3 185 25~185 76.5 85.5 91 8 18.5 -

JXD-4 240 25~240 76 86.5 95.5 8 22 - )
-
H Type Clamp

Main Line Branch Line Product Size(mm)
Type
Diameter Diameter L R1 R2 H
2
2
(mm ) (mm )
JH1 4.8~8.2 4.8~8.2 38 5.3 5.3 17.3
JH2 8.3~14 4.8~9.6 48 7.3 5.3 21.9
3 3 )
JH3 10~14 10~14 60 7.3 7.3 21

JH4 13~22.4 4.8~11.4 51 11 6.3 32

JH5 13~22.4 11.6~16 51 11.3 8 32
-
JH6 16.2~22.4 16.2~22.4 89 11.3 11.3 30.6
