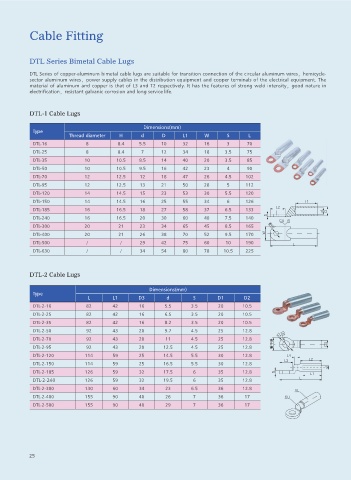

Cable Fitting

DTL Series Bimetal Cable Lugs

DTL Series of copper-aluminum bimetal cable lugs are suitable for transition connection of the circular aluminum wires，hemicycle-
sector aluminum wires，power supply cables in the distribution equipment and copper terminals of the electrical equipment. The
material of aluminum and copper is that of L3 and T2 respectively. It has the features of strong weld intensity，good nature in
electrification，resistant galvanic corrosion and long service life.

DTL-1 Cable Lugs

Dimensions(mm)
Type
Thread diameter H d D L1 W S L
DTL-16 8 8.4 5.5 10 32 16 3 70
DTL-25 8 8.4 7 12 34 18 3.5 75
DTL-35 10 10.5 8.5 14 40 20 3.5 85
DTL-50 10 10.5 9.5 16 42 23 4 90
DTL-70 12 12.5 12 18 47 26 4.5 102
DTL-95 12 12.5 13 21 50 28 5 112
DTL-120 14 14.5 15 23 53 30 5.5 120
DTL-150 14 14.5 16 25 55 34 6 126 -
DTL-185 16 16.5 18 27 58 37 6.5 133 - E %
DTL-240 16 16.5 20 30 60 40 7.5 140 4
$6 "-
DTL-300 20 21 23 34 65 45 8.5 165 Ÿ)
DTL-400 20 21 26 38 70 52 9.5 170 8
DTL-500 / / 29 42 75 60 10 190 -
DTL-630 / / 34 54 80 78 10.5 225

DTL-2 Cable Lugs

Dimensions(mm)
Type
L L1 D3 d S D1 D2
DTL-2-16 82 42 16 5.5 3.5 20 10.5
DTL-2-25 82 42 16 6.5 3.5 20 10.5
DTL-2-35 82 42 16 8.2 3.5 20 10.5
DTL-2-50 92 43 20 9.7 4.5 25 12.8 %
DTL-2-70 92 43 20 11 4.5 25 12.8 %
DTL-2-95 92 43 20 12.5 4.5 25 12.8 ⰷ̹⌱ %
DTL-2-120 114 59 25 14.5 5.5 30 12.8 -
- -
DTL-2-150 114 59 25 16.5 5.5 30 12.8
E
DTL-2-185 126 59 32 17.5 6 35 12.8 4 -
DTL-2-240 126 59 32 19.5 6 35 12.8 -
DTL-2-300 130 60 34 23 6.5 36 12.8
"-
DTL-2-400 155 90 40 26 7 36 17 $6
DTL-2-500 155 90 40 29 7 36 17

25
