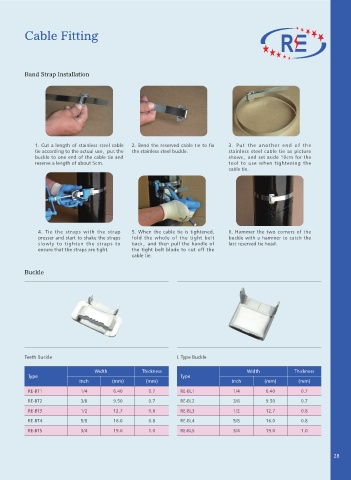

Cable Fitting

Band Strap Installation

1. Cut a length of stainless steel cable 2. Bend the reserved cable tie to fix 3. Put the another end of the
tie according to the actual use，put the the stainless steel buckle. stainless steel cable tie as picture
buckle to one end of the cable tie and shows，and set aside 10cm for the
reserve a length of about 5cm. tool to use when tightening the
cable tie.

4. Tie the straps with the strap 5. When the cable tie is tightened, 6. Hammer the two corners of the
presser and start to shake the straps fold the whole of the tight belt buckle with a hammer to catch the
slowly to tighten the straps to back，and then pull the handle of last reserved tie head.
ensure that the straps are tight. the tight belt blade to cut off the
cable tie.

Buckle

Teeth Buckle L Type Buckle

Width Thickness Width Thickness
Type Type
Inch (mm) (mm) Inch (mm) (mm)
RE-BT1 1/4 6.40 0.7 RE-BL1 1/4 6.40 0.7

RE-BT2 3/8 9.50 0.7 RE-BL2 3/8 9.50 0.7
RE-BT3 1/2 12.7 0.8 RE-BL3 1/2 12.7 0.8
RE-BT4 5/8 16.0 0.8 RE-BL4 5/8 16.0 0.8
RE-BT5 3/4 19.0 1.0 RE-BL5 3/4 19.0 1.0
