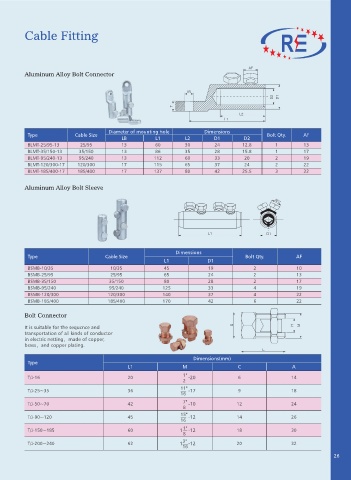

Cable Fitting

"'
Aluminum Alloy Bolt Connector

-#
% %

5
-
-

Diameter of mounting hole Dimensions
Type Cable Size Bolt Qty. AF
LB L1 L2 D1 D2
BLMT-25/95-13 25/95 13 60 30 24 12.8 1 13
BLMT-35/150-13 35/150 13 86 35 28 15.8 1 17
BLMT-95/240-13 95/240 13 112 60 33 20 2 19
BLMT-120/300-17 120/300 17 115 65 37 24 2 22
BLMT-185/400-17 185/400 17 137 80 42 25.5 3 22

Aluminum Alloy Bolt Sleeve

"'

- %

Dimensions
Type Cable Size Bolt Qty. AF
L1 D1
BSMB-10/35 10/35 45 19 2 10
BSMB-25/95 25/95 65 24 2 13
BSMB-35/150 35/150 80 28 2 17
BSMB-95/240 95/240 125 33 4 19
BSMB-120/300 120/300 140 37 4 22
BSMB-185/400 185/400 170 42 6 22

Bolt Connector

It is suitable for the sequcnce and 4 ) .
transportation of all kinds of conductor
in electric netting，made of copper,
brass，and copper plating.
-
Dimensions(mm)
Type
L1 M C A
1''
T/J-16 20 -20 6 14
2
T/J-25~35 36 11'' -17 9 18
16
T/J-50~70 42 7'' -10 12 24
8
15''
T/J-90~120 45 -12 14 26
16
1''
T/J-150~185 60 1 -12 18 30
8
3''
T/J-200~240 62 1 -12 20 32
16
