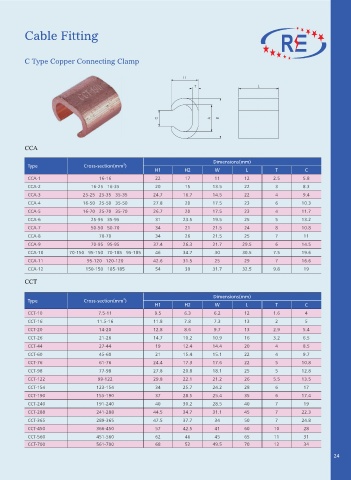

Page 27 - YUEQING REACON ELECTRIC CO., LTD.

Cable Fitting

C Type Copper Connecting Clamp

)
5 -

$ " #

CCA

Dimensions(mm)
2
Type Cross-section(mm )
H1 H2 W L T C
CCA-1 16-16 22 17 11 12 2.5 5.8
CCA-2 16-25 16-35 20 15 13.5 22 3 8.3
CCA-3 25-25 25-35 35-35 24.7 16.7 14.5 22 4 9.4
CCA-4 16-50 25-50 35-50 27.8 20 17.5 23 6 10.3
CCA-5 16-70 25-70 35-70 26.7 20 17.5 23 4 11.7
CCA-6 25-95 35-95 31 23.5 19.5 25 5 13.2
CCA-7 50-50 50-70 34 21 21.5 24 8 10.8
CCA-8 70-70 34 26 21.5 25 7 11
CCA-9 70-95 95-95 37.4 26.3 21.7 29.5 6 14.5
CCA-10 70-150 95-150 70-185 95-185 46 34.7 30 30.5 7.5 19.6
CCA-11 95-120 120-120 42.6 31.5 25 29 7 16.6
CCA-12 150-150 185-185 54 39 31.7 32.5 9.8 19

CCT

Dimensions(mm)
2
Type Cross-section(mm )
H1 H2 W L T C
CCT-10 7.5-11 9.5 6.3 6.2 12 1.6 4
CCT-16 11.5-16 11.8 7.8 7.3 13 2 5
CCT-20 14-20 12.8 8.6 9.7 13 2.9 5.4
CCT-26 21-26 14.7 10.2 10.9 16 3.2 6.5
CCT-44 27-44 19 12.4 14.4 20 4 8.5
CCT-60 45-60 21 15.4 15.1 22 4 9.7
CCT-76 61-76 24.4 17.3 17.6 22 5 10.8
CCT-98 77-98 27.8 20.8 18.1 25 5 12.8
CCT-122 99-122 29.8 22.1 21.2 26 5.5 13.5
CCT-154 123-154 34 25.7 24.2 28 6 17
CCT-190 155-190 37 28.5 25.4 35 6 17.4
CCT-240 191-240 40 30.2 28.5 40 7 19
CCT-288 241-288 44.5 34.7 31.1 45 7 22.3
CCT-365 289-365 47.5 37.7 34 50 7 24.8
CCT-450 366-450 57 42.5 41 60 10 28
CCT-560 451-560 62 46 45 65 11 31
CCT-700 561-700 68 52 49.5 70 12 34
