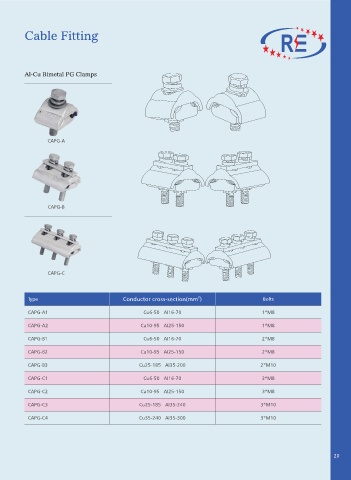

Cable Fitting

Al-Cu Bimetal PG Clamps

CAPG-A

CAPG-B

CAPG-C

2
Type Conductor cross-section(mm ) Bolts
CAPG-A1 Cu6-50 AI16-70 1*M8

CAPG-A2 Cu10-95 AI25-150 1*M8

CAPG-B1 Cu6-50 AI16-70 2*M8

CAPG-B2 Cu10-95 AI25-150 2*M8

CAPG-B3 Cu25-185 AI35-200 2*M10

CAPG-C1 Cu6-50 AI16-70 3*M8
CAPG-C2 Cu10-95 AI25-150 3*M8

CAPG-C3 Cu25-185 AI35-240 3*M10

CAPG-C4 Cu35-240 AI35-300 3*M10
