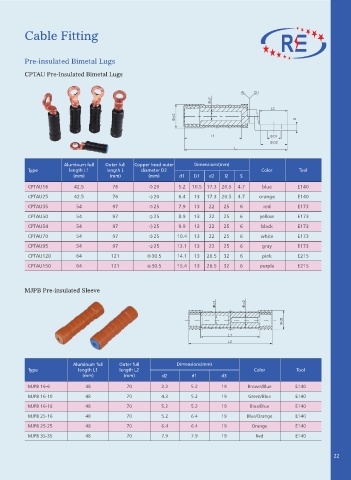

Page 25 - YUEQING REACON ELECTRIC CO., LTD.
P. 25
Cable Fitting
Pre-insulated Bimetal Lugs
CPTAU Pre-Insulated Bimetal Lugs
"- $6
E
-
E 4
- %
%
-
Aluminum full Outer full Copper head outer Dimensions(mm)
Type length L1 length L diameter D2 Color Tool
(mm) (mm) (mm) d1 D1 d2 l2 S
CPTAU16 42.5 76 Φ20 5.2 10.5 17.3 20.5 4.7 blue E140
CPTAU25 42.5 76 Φ20 6.4 13 17.3 20.5 4.7 orange E140
CPTAU35 54 97 Φ25 7.9 13 22 25 6 red E173
CPTAU50 54 97 Φ25 8.9 13 22 25 6 yellow E173
CPTAU54 54 97 Φ25 9.9 13 22 25 6 black E173
CPTAU70 54 97 Φ25 10.4 13 22 25 6 white E173
CPTAU95 54 97 Φ25 12.1 13 22 25 6 gray E173
CPTAU120 64 121 Φ30.5 14.1 13 26.5 32 6 pink E215
CPTAU150 64 121 Φ30.5 15.4 13 26.5 32 6 purple E215
MJPB Pre-insulated Sleeve
E E
E
-
-
Aluminum full Outer full Dimensions(mm)
Type length L1 length L2 Color Tool
(mm) (mm) d2 d1 d3
MJPB 16-6 48 70 3.3 5.2 19 Brown/Blue E140
MJPB 16-10 48 70 4.3 5.2 19 Green/Blue E140
MJPB 16-16 48 70 5.2 5.2 19 Blue/Blue E140
MJPB 25-16 48 70 5.2 6.4 19 Blue/Orange E140
MJPB 25-25 48 70 6.4 6.4 19 Orange E140
MJPB 35-35 48 70 7.9 7.9 19 Red E140
