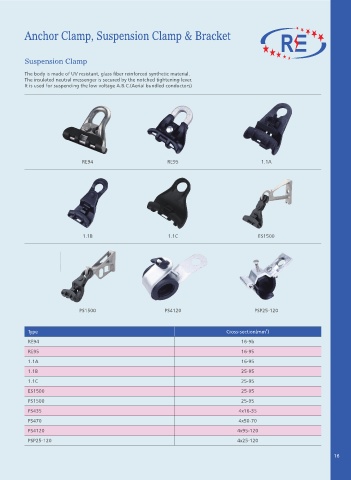

Anchor Clamp, Suspension Clamp & Bracket




          Suspension Clamp

          The body is made of UV resistant, glass fiber reinforced synthetic material.
          The insulated neutral messenger is secured by the notched tightening lever.
          It is used for suspending the low voltage A.B.C.(Aerial bundled conductors)














                             RE94                          RE95                            1.1A














                             1.1B                          1.1C                           ES1500














                            PS1500                        PS4120                         PSP25-120


                                                                                            2
           Type                                                                Cross-section(mm )
           RE94                                                                     16-9b
           RE95                                                                     16-95
           1.1A                                                                     16-95
           1.1B                                                                     25-95
           1.1C                                                                     25-95
           ES1500                                                                   25-95

           PS1500                                                                   25-95
           PS435                                                                   4x16-35
           PS470                                                                   4x50-70
           PS4120                                                                  4x95-120
           PSP25-120                                                               4x25-120
