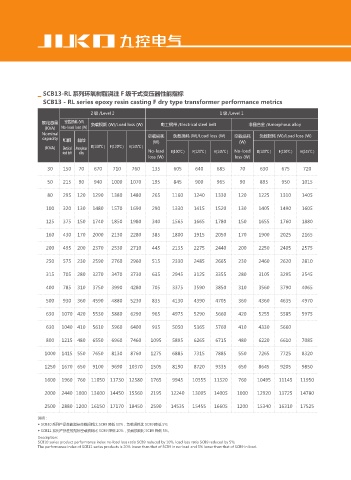

▁ SCB13-RL 系列环氧树脂浇注 F 级干式变压器性能指标
SCB13 - RL series epoxy resin casting F dry type transformer performance metrics

2 级 /Level 2 1 级 /Level 1
额定容量 空载损耗 (W) 负载损耗 (W)/Load loss (W) 电工钢带 /Electrical steel belt 非晶合金 /Amorphous alloy
(KVA) No-load loss (W)
Nominal 空载损耗 负载损耗 (W)/Load loss (W) 空载损耗 负载损耗 (W)/Load loss (W)
capacity 电工钢带 非晶合金
(W) (W)
(KVA) Electrical Amorphous B(100℃ ) F(120℃ ) H(145℃ )
steel belt alloy No-load B(100℃ ) F(120℃ ) H(145℃ ) No-load B(100℃ ) F(120℃ ) H(145℃ )
loss (W) loss (W)

30 150 70 670 710 760 135 605 640 685 70 630 675 720
50 215 90 940 1000 1070 195 845 900 965 90 895 950 1015

80 295 120 1290 1380 1480 265 1160 1240 1330 120 1225 1310 1405

100 320 130 1480 1570 1690 290 1330 1415 1520 130 1405 1490 1605

125 375 150 1740 1850 1980 340 1565 1665 1780 150 1655 1760 1880

160 430 170 2000 2130 2280 385 1800 1915 2050 170 1900 2025 2165

200 495 200 2370 2530 2710 445 2135 2275 2440 200 2250 2405 2575
250 575 230 2590 2760 2960 515 2330 2485 2665 230 2460 2620 2810

315 705 280 3270 3470 3730 635 2945 3125 3355 280 3105 3295 3545

400 785 310 3750 3990 4280 705 3375 3590 3850 310 3560 3790 4065

500 930 360 4590 4880 5230 835 4130 4390 4705 360 4360 4635 4970

630 1070 420 5530 5880 6290 965 4975 5290 5660 420 5255 5585 5975

630 1040 410 5610 5960 6400 935 5050 5365 5760 410 4330 5660
800 1215 480 6550 6960 7460 1095 5895 6265 6715 480 6220 6610 7085

1000 1415 550 7650 8130 8760 1275 6885 7315 7885 550 7265 7725 8320

1250 1670 650 9100 9690 10370 1505 8190 8720 9335 650 8645 9205 9850

1600 1960 760 11050 11730 12580 1765 9945 10555 11320 760 10495 11145 11950
57
2000 2440 1000 13600 14450 15560 2195 12240 13005 14005 1000 12920 13725 14780

2500 2880 1200 16150 17170 18450 2590 14535 15455 16605 1200 15340 16310 17525
说明：
◆ SCB10 系列产品性能指标空载损耗比 SCB9 降低 10%，负载损耗比 SCB9 降低 5%;
◆ SCB11 系列产品性能指标空载损耗比 SCB9 降低 20%，负载损耗比 SCB9 降低 5%。
Description:
SCB10 series product performance index no-load loss ratio SCB9 reduced by 10%, load loss ratio SCB9 reduced by 5%;
The performance index of SCB11 series products is 20% lower than that of SCB9 in no-load and 5% lower than that of SCB9 in load.
