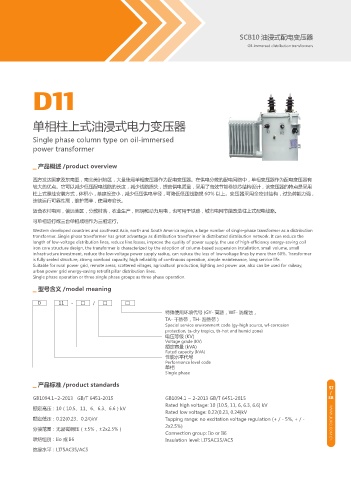

SCB10 油浸式配电变压器
Oil-immersed distribution transformers

D11

单相柱上式油浸式电力变压器

Single phase column type on oil-immersed
power transformer

▁ 产品概述 /product overview

西方发达国家及东南亚，南北美洲地区，大量使用单相变压器作为配电变压器。在供电分散的配电网络中，单相变压器作为配电变压器有
较大的优点。它可以减少低压配电线路的长度，减少线路损失，提高供电质量，采用了高效节能卷铁芯结构设计，该变压器的特点是采用
柱上式悬挂安装方式，体积小，基建投资小，减少低压供电半径，可降低低压线路损 60% 以上。变压器采用全密封结构，过负荷能力强，
连续运行可靠性高，维护简单，使用寿命长。

适合农村电网，偏远地区，分散村落，农业生产，照明和动力用电，也可用于铁路，城市电网节能改造柱上式配电线路。
可单相运行或三台单相成组作为三相运行。
Western developed countries and southeast Asia, north and South America region, a large number of single-phase transformer as a distribution
transformer. Single phase transformer has great advantage as distribution transformer in distributed distribution network. It can reduce the
length of low-voltage distribution lines, reduce line losses, improve the quality of power supply, the use of high-efficiency energy-saving coil
iron core structure design, the transformer is characterized by the adoption of column-based suspension installation, small volume, small
infrastructure investment, reduce the low-voltage power supply radius, can reduce the loss of low-voltage lines by more than 60%. Transformer
is fully sealed structure, strong overload capacity, high reliability of continuous operation, simple maintenance, long service life.
Suitable for rural power grid, remote areas, scattered villages, agricultural production, lighting and power use, also can be used for railway,
urban power grid energy-saving retrofit pillar distribution lines.
Single phase operation or three single phase groups as three phase operation.
▁ 型号含义 /model meaning

D 11 - □ / □ □
特殊使用环境代号 (GY- 高源，WF- 防腐蚀，
TA- 干热带，TH- 湿热带 )
Special service environment code (gy-high source, wf-corrosion
protection, ta-dry tropics, th-hot and humid zone)
电压等级 (KV)
Voltage grade (KV)
额定容量 (kVA)
Rated capacity (kVA)
性能水平代号
Performance level code
单相
Single phase
▁ 产品标准 /product standards
57
/
GB1094.1~2-2013 GB/T 6451-2015 GB1094.1 ~ 2-2013 GB/T 6451-2015 58
Rated high voltage: 10 (10.5, 11, 6, 6.3, 6.6) kV
额定高压：10（10.5、11、6、6.3、6.6）kV
Rated low voltage: 0.22(0.23, 0.24)kV
额定低压：0.22(0.23、0.24)kV Tapping range: no excitation voltage regulation (+ / - 5%, + / -
2x2.5%) WWW.JIUKO.COM.CN
分接范围：无励磁调压（±5%，±2x2.5%）
Connection group: Iio or Ii6
联结组别：Iio 或 Ii6 Insulation level: LI75AC35/AC5
绝缘水平：LI75AC35/AC5
