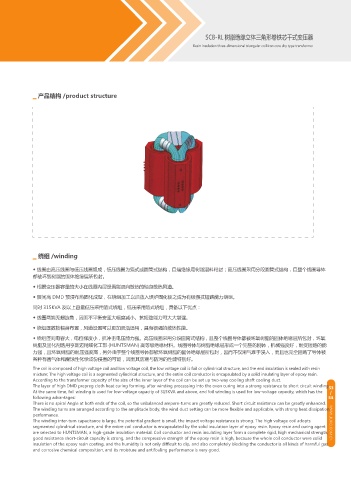

SCB-RL 树脂绝缘立体三角形卷铁芯干式变压器
Resin insulation three-dimensional triangular coil iron core dry type transformer

▁ 产品结构 /product structure

▁ 绕组 /winding

◆ 线圈由高压线圈与低压线圈组成，低压线圈为箔式或圆筒式结构，且端绝缘用树脂混料粘封；高压线圈采用分段圆筒式结构，且整个线圈导体
都被环氧树脂的固体绝缘层所包封。
◆ 根据变压器容量的大小在线圈内层设置能双向散热的轴身散热风道。
◆ 层间高 DMD 预浸布热固化成型，在绕组加工以后放入烘炉固化使之成为有极强抗短路能力绕组。
同时 315KVA 及以上容量低压采用箔式绕组，低压采用箔式绕组，具备以下优点：

◆ 线圈两端无螺旋角，因而不平衡安匝大幅度减小。抗短路能力可大大增强。
◆ 绕组匝数按幅身布置，风道设置可以更加灵活适用，具有很强的散热性能。
◆ 绕组匝间电容大，电位梯度小，抗冲击电压能力强。高压线圈采用分段圆筒式结构，且整个线圈导体都被环氧树脂的固体绝缘层所包封，环氧
树脂及固化剂选用亨斯迈精细化工部 (HUNTSMAN) 高等级绝缘材料。线圈导体与树脂绝缘层形成一个完整的刚体，机械强度好，耐受短路的能
力强，且环氧树脂的耐压强度高，另外由于整个线圈导体都被环氧树脂的固体绝缘层所包封，因而不仅潮气难于浸入，而且也完全阻断了导体被
各种有害气体和腐蚀性化学成份侵害的可能，因而其防潮与防污的性能特别好。
The coil is composed of high voltage coil and low voltage coil, the low voltage coil is foil or cylindrical structure, and the end insulation is sealed with resin
mixture; The high voltage coil is a segmented cylindrical structure, and the entire coil conductor is encapsulated by a solid insulating layer of epoxy resin.
According to the transformer capacity of the size of the inner layer of the coil can be set up two-way cooling shaft cooling duct.
The layer of high DMD prepreg cloth heat curing forming, after winding processing into the oven curing into a strong resistance to short circuit winding. 53
At the same time, foil winding is used for low-voltage capacity of 315KVA and above, and foil winding is used for low-voltage capacity, which has the /
following advantages: 54
There is no spiral Angle at both ends of the coil, so the unbalanced ampere-turns are greatly reduced. Short circuit resistance can be greatly enhanced.
The winding turns are arranged according to the amplitude body, the wind duct setting can be more flexible and applicable, with strong heat dissipation
performance.
The winding inter-turn capacitance is large, the potential gradient is small, the impact voltage resistance is strong. The high voltage coil adopts WWW.JIUKO.COM.CN
segmented cylindrical structure, and the entire coil conductor is encapsulated by the solid insulation layer of epoxy resin. Epoxy resin and curing agent
are selected to HUNTSMAN, a high-grade insulation material. Coil conductor and resin insulating layer form a complete rigid, high mechanical strength,
good resistance short-circuit capacity is strong, and the compressive strength of the epoxy resin is high, because the whole coil conductor were solid
insulation of the epoxy resin coating, and the humidity is not only difficult to dip, and also completely blocking the conductor is all kinds of harmful gas
and corrosive chemical composition, and its moisture and antifouling performance is very good.
