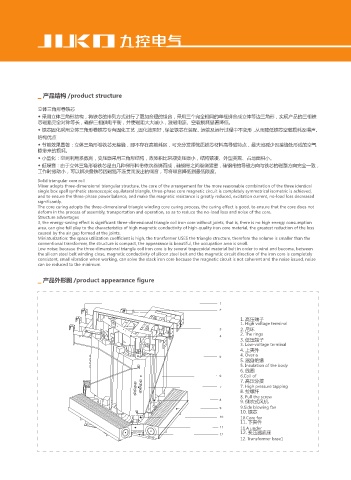

Page 62 - 九控电气科技有限公司

▁ 产品结构 /product structure

立体三角形卷铁芯
◆ 采用立体三角形结构，将铁芯的排列方式进行了更加合理的组合，采用三个完全相同的单框拼合成立体等边三角形，实现产品的三相铁
芯磁路完全对称等长，确保三相供电平衡，并使磁阻大大减小，激磁电流、空载损耗显著降低。
◆ 铁芯固化采用立体三角形卷铁芯专有固化工艺，固化效果好，保证铁芯在装配、运输及运行过程中不变形，从而降低铁芯空载损耗及噪声。
结构优点
◆ 节能效果显著：立体三角形卷铁芯无接缝，即不存在高能耗区，可充分发挥优质铁芯材料高导磁特点，最大地减少因接缝处形成的空气
隙带来的损耗。
◆ 小型化：空间利用系数高，变压器采用三角形结构，故体积比常规变压器小，结构紧凑、外型美观、占地面积小。
◆ 低噪音：由于立体三角形卷铁芯是由几种梯形料带依次卷绕而成，硅钢带之间卷绕紧密，硅钢带的导磁方向与铁芯的磁路方向完全一致，
工作时振动小，可以解决叠铁芯因磁路不连贯而发出的噪音，可将噪音降低到最低限度。
Solid triangular core roll
Mixer adopts three-dimensional triangular structure, the core of the arrangement for the more reasonable combination of the three identical
single box spell synthetic stereoscopic equilateral triangle, three-phase core magnetic circuit is completely symmetrical isometric is achieved,
and to ensure the three-phase power balance, and make the magnetic resistance is greatly reduced, excitation current, no-load loss decreased
significantly.
The core curing adopts the three-dimensional triangle winding core curing process, the curing effect is good, to ensure that the core does not
deform in the process of assembly, transportation and operation, so as to reduce the no-load loss and noise of the core.
Structure advantages
3, the energy-saving effect is significant: three-dimensional triangle coil iron core without joints, that is, there is no high energy consumption
area, can give full play to the characteristics of high magnetic conductivity of high-quality iron core material, the greatest reduction of the loss
caused by the air gap formed at the joints.
Miniaturization: the space utilization coefficient is high, the transformer USES the triangle structure, therefore the volume is smaller than the
conventional transformer, the structure is compact, the appearance is beautiful, the occupation area is small.
Low noise: because the three-dimensional triangle coil iron core is by several trapezoidal material belt in order to wind and become, between
the silicon steel belt winding close, magnetic conductivity of silicon steel belt and the magnetic circuit direction of the iron core is completely
consistent, small vibration when working, can solve the stack iron core because the magnetic circuit is not coherent and the noise issued, noise
can be reduced to the minimum.

▁ 产品外形图 /product appearance figure

1. 高压端子
1. High voltage terminal
2. 吊环
2. The rings

3. 低压端子
3. Low-voltage terminal
4. 上夹件
4. Over a
5. 器身绝缘
5. Insulation of the body
6. 线圈
6.Coil of
7. 高压分接
7. High pressure tapping 53
8. 拉螺杆
8. Pull the screw
9. 侧吹式风机
9.Side blowing fan
10. 铁芯
10.Core for
11. 下夹件
11.A under
12. 变压器底座

12. Transformer base1
