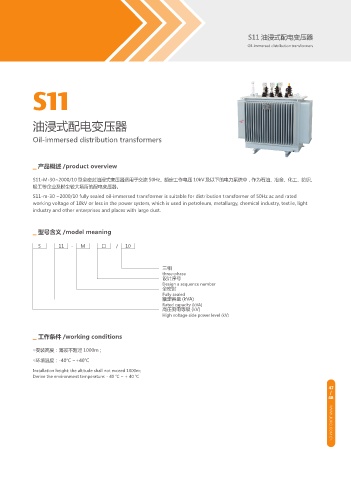

S11 油浸式配电变压器
Oil-immersed distribution transformers

S11

油浸式配电变压器

Oil-immersed distribution transformers

▁ 产品概述 /product overview

S11-M-30~2000/10 型全密封油浸式变压器适用于交流 50Hz、额定工作电压 10kV 及以下的电力系统中，作为石油、冶金、化工、纺织、
轻工等企业及粉尘较大场所的配电变压器。

S11-m-30 ~2000/10 fully sealed oil-immersed transformer is suitable for distribution transformer of 50Hz ac and rated
working voltage of 10kV or less in the power system, which is used in petroleum, metallurgy, chemical industry, textile, light
industry and other enterprises and places with large dust.

▁ 型号含义 /model meaning

S 11 - M □ / 10

三相
three-phase
设计序号
Design a sequence number
全密封
Fully sealed
额定容量 (kVA)
Rated capacity (kVA)
高压侧电等级 (kV)
High voltage side power level (kV)

▁ 工作条件 /working conditions
◇安装高度：海拔不超过 1000m ;

◇环境温度：-40℃ ~+40℃
Installation height: the altitude shall not exceed 1000m;
Derive the environment temperature: - 40 ℃ ~ + 40 ℃
