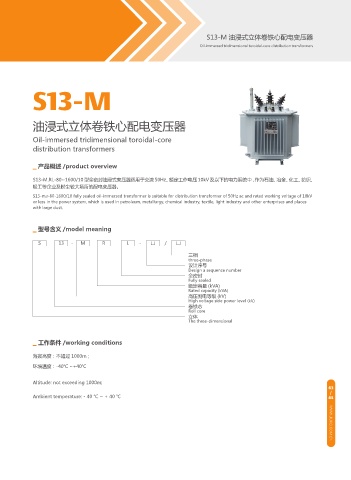

S13-M 油浸式立体卷铁心配电变压器
Oil-immersed tridimensional toroidal-core distribution transformers

S13-M

油浸式立体卷铁心配电变压器

Oil-immersed tridimensional toroidal-core
distribution transformers

▁ 产品概述 /product overview

S13-M.RL-80~1600/10 型全密封油浸式变压器适用于交流 50Hz、额定工作电压 10kV 及以下的电力系统中，作为石油、冶金、化工、纺织、
轻工等企业及粉尘较大场所的配电变压器。

S13-m.r-80-1600/10 fully sealed oil-immersed transformer is suitable for distribution transformer of 50Hz ac and rated working voltage of 10kV
or less in the power system, which is used in petroleum, metallurgy, chemical industry, textile, light industry and other enterprises and places
with large dust.

▁ 型号含义 /model meaning

S 13 - M R L - □ / □
三相
three-phase
设计序号
Design a sequence number
全密封
Fully sealed
额定容量 (kVA)
Rated capacity (kVA)
高压侧电等级 (kV)
High voltage side power level (kV)
卷铁芯
Roll core
立体
The three-dimensional

▁ 工作条件 /working conditions

海拔高度：不超过 1000m ;
环境温度：-40℃ ~+40℃

Altitude: not exceeding 1000m;
43
/
Ambient temperature: - 40 ℃ ~ + 40 ℃ 44
