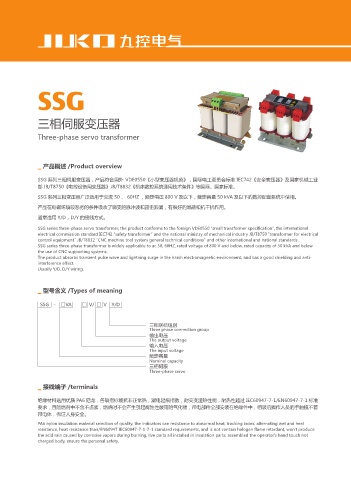

SSG

三相伺服变压器

Three-phase servo transformer

▁ 产品概述 /Product overview

SSG 系列三相伺服变压器，产品符合国外 VDE0550《小型变压器规范》，国际电工委员会标准 IEC742《安全变压器》及国家机械工业
部 JB/T8750《电控设备用变压器》JB/T8832《机床数控系统通用技术条件》等国际、国家标准。

SSG 系列三相变压器广泛适用于交流 50 、 60HZ ，额定电压 800 V 及以下，额定容量 50 kVA 及以下的数控配套系统中使用。
产品在电磁环境较恶劣的条件吸收了瞬变的脉冲波和雷击浪涌，有很好的屏蔽和抗干扰作用。
通常选用 Y/D，D/Y 的接线方式。
SSG series three-phase servo transformer, the product conforms to the foreign VDE0550 "small transformer specification", the international
electrical commission standard IEC742 "safety transformer" and the national ministry of mechanical industry JB/T8750 "transformer for electrical
control equipment" JB/T8832 "CNC machine tool system general technical conditions" and other international and national standards.
SSG series three-phase transformer is widely applicable to ac 50, 60HZ, rated voltage of 800 V and below, rated capacity of 50 kVA and below
the use of CNC supporting systems.
The product absorbs transient pulse wave and lightning surge in the harsh electromagnetic environment, and has a good shielding and anti-
interference effect.
Usually Y/D, D/Y wiring.

▁ 型号含义 /Types of meaning

SSG - □VA □ V / □ V Y/D

三相联结组别
Three phase connection group
输出电压
The output voltage
输入电压
The input voltage
额定容量
Nominal capacity
三相伺服
Three-phase servo

▁ 接线端子 /terminals 15

绝缘材料选用优质 PA6 尼龙，各项指标能抗非正常热，漏电起痕指数，耐交变湿热性能，耐热性超过 IEC60947-7-1/EN60947-7-1 标准
要求，且阻燃剂中不含不卤素，燃烧时不会产生引起腐蚀性酸雨的气化物，带电部件全部安装在绝缘件中，组装后操作人员的手触摸不着
带电体，保证人身安全。
PA6 nylon insulation material selection of quality, the indicators can resistance to abnormal heat, tracking index, alternating wet and heat
resistance, heat resistance than/EN60947 IEC60947-7-1-7-1 standard requirements, and is not contain halogen flame retardant, won't produce
the acid rain caused by corrosive vapors during burning, live parts all installed in insulation parts, assembled the operator's hand touch not
charged body, ensure the personal safety.
