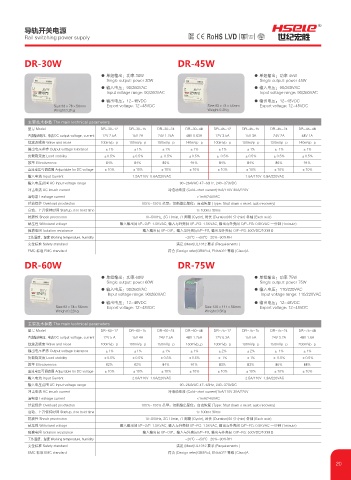

导轨开关电源
R
Rail switching power supply Gemary (0&
UFTUFE

DR-30W DR-45W

● 单组输出：功率 30W ● 单组输出：功率 45W
Single output: power 30W Single output: power 45W
● 输入电压：90/260VAC ● 输入电压：90/260VAC
Input voltage range: 90/260VAC Input voltage range: 90/260VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:93×78×56mm Export voltage: 12~48VDC Size:93×78×56mm Export voltage: 12~48VDC
Weight:0.2Kg Weight:0.2Kg

主要技术参数 The main technical parameters
型号 Model DR-30-12 DR-30-15 DR-30-24 DR-30-48 DR-45-12 DR-45-15 DR-45-24 DR-45-48
直流输出电压、电流 DC output voltage, current 12V 2.5A 15V 2A 24V 1.25A 48V 0.63A 12V 3.5A 15V 3A 24V 2A 48V 1A
纹波及噪音 Wave and niose 100mVp-p 100mVp-p 150mVp-p 140mVp-p 100mVp-p 100mVp-p 150mVp-p 140mVp-p
输出电压差容 Output voltage tolerance ±1% ±1% ±1% ±1% ±1% ±1% ± 1% ±1%
负载稳定度 Load stability ±0.5% ±0.5% ± 0.5% ±0.5% ± 0.5% ±0.5% ±0.5% ±0.5%
效率 Effectiveness 84% 84% 86% 91% 84% 84% 86% 91%
直流电压可调范围 Adjustable for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
输入电流 Input Current 1.2A/110V 0.6A/220VAC 1.6A/110V 0.8A/220VAC
输入电压范围 AC Input voltage range 90~264VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current)15A/110V 30A/220V
漏电流 Leakage current <1mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -20℃ ~+50℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements )
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A
DR-60W DR-75W

● 单组输出：功率 60W ● 单组输出：功率 75W
Single output: power 60W Single output: power 75W
● 输入电压：90/260VAC ● 输入电压：110/220VAC
Input voltage range: 90/260VAC Input voltage range: 110/220VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:93×78×56mm Export voltage: 12~48VDC Size:125×111×56mm Export voltage: 12~48VDC
Weight:0.22Kg Weight:0.5Kg
主要技术参数 The main technical parameters
型号 Model DR-60-12 DR-60-15 DR-60-24 DR-60-48 DR-75-12 DR-75-15 DR-75-24 DR-75-48
直流输出电压、电流 DC output voltage, current 12V 5 A 15V 4A 24V 2.5A 48V 1.25A 12V 6.3A 15V 5A 24V 3.2A 48V 1.6A
纹波及噪音 Wave and niose 100mVp-p 100mVp-p 150mVp-p 150mVp_p 100mVp-p 100mVp-p 150mVp-p 200mVp-p
输出电压差容 Output voltage tolerance ±1% ±1% ±1% ±1% ±2% ±2% ± 1% ±1%
负载稳定度 Load stability ±0.5% ±0.5% ±0.5% ±0.5% ± 1% ±1% ± 0.5% ±0.5%
效率 Effectiveness 82% 82% 84% 91% 83% 83% 86% 88%
直流电压可调范围 Adjustable for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
输入电流 Input Current 2.0A/110V 1.0A/220VAC 2.5A/110V 1.3A/220VAC
输入电压范围 AC Input voltage range 90~264VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current)15A/110V 30A/220V
漏电流 Leakage current <1mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -20℃ ~+50℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements )
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A
