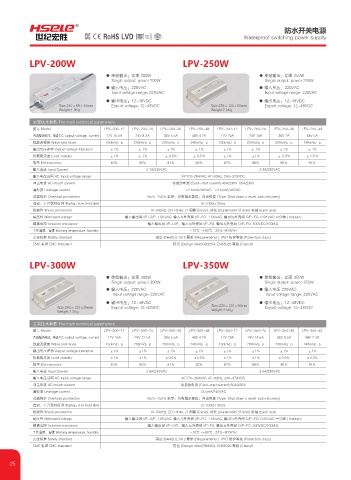

防水开关电源
R
(0& Waterproof switching power supply
UFTUFE
Gemary
LPV-200W LPV-250W

● 单组输出：功率 200W ● 单组输出：功率 250W
Single output: power 200W Single output: power 250W
● 输入电压：220VAC ● 输入电压：220VAC
Input voltage range: 220VAC Input voltage range: 220VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:240×69×42mm Export voltage: 12~48VDC Size:235×120×55mm Export voltage: 12~48VDC
Weight:1.3Kg Weight:2.0Kg

主要技术参数 The main technical parameters
型号 Model LPV-200-12 LPV-200-24 LPV-200-36 LPV-200-48 LPV-250-12 LPV-250-24 LPV-250-36 LPV-250-48
直流输出电压、电流 DC output voltage, current 12V 16.5A 24V 8.3A 36V 5.5A 48V 4.2A 12V 20A 24V 10A 36V 7A 48V 5A
纹波及噪音 Wave and niose 150mVp-p 200mVp-p 200mVp-p 240mVp-p 150mVp-p 200mVp-p 200mVp-p 140mVp-p
输出电压差容 Output voltage tolerance ±1% ± 1% ±1% ± 1% ±1% ± 1% ±1% ± 1%
负载稳定度 Load stability ±1% ± 1% ± 0.5% ± 0.5% ±1% ±1% ± 0.5% ± 0.5%
效率 Effectiveness 84% 90% 91% 92% 87% 88% 90% 91%
输入电流 Input Current 2.1A/230VAC 2.3A/230VAC
输入电压范围 AC Input voltage range AV170~264VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 40A/230V 50A/230V
漏电流 Leakage current <2.5mA/240VAC <3.5mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 2s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements ) IP67 防护等级 (Protection class)
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A

LPV-300W LPV-350W

● 单组输出：功率 300W ● 单组输出：功率 350W
Single output: power 300W Single output: power 350W
● 输入电压：220VAC ● 输入电压 220VAC
Input voltage range: 220VAC Input voltage range: 220VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:260×120×55mm Export voltage: 12~48VDC Size:230×120×55mm Export voltage: 12~48VDC
Weight:2.3Kg Weight:2.5Kg
主要技术参数 The main technical parameters
型号 Model LPV-300-12 LPV-300-24 LPV-300-36 LPV-300-48 LPV-350-12 LPV-350-24 LPV-350-36 LPV-350-48
直流输出电压、电流 DC output voltage, current 12V 25A 24V 12.5A 36V 5.5A 48V 4.2A 12V 29A 24V 14.5A 36V 9.5A 48V 7.3A
纹波及噪音 Wave and niose 150mVp-p 200mVp-p 200mVp-p 240mVp-p 150mVp-p 200mVp-p 200mVp-p 140mVp-p
输出电压差容 Output voltage tolerance ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
负载稳定度 Load stability ±1% ±1% ±0.5% ±0.5% ±1% ±1% ±0.5% ±0.5%
效率 Effectiveness 84% 90% 91% 92% 87% 88% 90% 91%
输入电流 Input Current 2.6A/230VAC 3.0A/230VAC
输入电压范围 AC Input voltage range AC170~264VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 50A/230V
漏电流 Leakage current <3.5mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 2s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements ) IP67 防护等级 (Protection class)
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A
