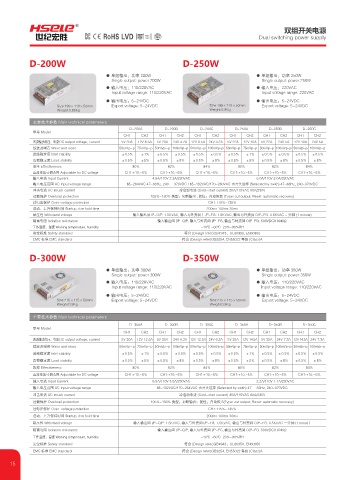

双组开关电源
R
(0& Dual switching power supply
UFTUFE
Gemary
D-200W D-250W

● 单组输出：功率 200W ● 单组输出：功率 250W
Single output: power 200W Single output: power 250W
● 输入电压：110/220VAC ● 输入电压：220VAC
Input voltage range: 110/220VAC Input voltage range: 220VAC
● 输出电压：5~24VDC ● 输出电压：5~24VDC
Size:199×110×50mm Export voltage: 5~24VDC Size:199×110×50mm Export voltage: 5~24VDC
Weight:0.85Kg Weight:0.9Kg

主要技术参数 Main technical parameters
D-200A D-200B D-200C D-250A D-250B D-250C
型号 Model
CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2
直流输出电压、电流 DC output voltage, current 5V 20A 12V 8.5A 5V 20A 24V 4.2A 12V 8.5A 24V 4.2A 5V 22A 12V 10A 5V 22A 24V 5A 12V 10A 24V 5A
纹波及噪音 Wave and niose 50mVp-p 75mVp-p 50mVp-p 100mVp-p 50mVp-p 100mVp-p 50mVp-p 75mVp-p 50mVp-p 100mVp-p 50mVp-p 100mVp-p
进线稳定度 Inlet stability ±0.5% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±1% ±0.5% ±0.5% ±0.5% ±0.5%
负载稳定度 Load stability ±0.5% ±5% ±0.5% ±8% ±0.5% ±8% ±0.5% ±5% ±0.5% ±8% ±0.5% ±8%
效率 Effectiveness 80% 82% 84% 80% 82% 84%
直流电压可调范围 Adjustable for DC voltage CH1:+10,-5% CH1:+10,-5% CH1:+10,-5% CH1:+10,-5% CH1:+10,-5% CH1:+10,-5%
输入电流 Input Current 4.5A/110V 2.3A/230VAC 6.0A/110V 3.0A/230VAC
输入电压范围 AC Input voltage range 85-264VAC 47~63Hz, 240 〜 370VDC / 85~132VAC/170~260VAC 由开关选择 (Selected by swith) 47~63Hz, 240~370VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 25A/115VAC 50A/230V
过载保护 Overload protection 105%~130% 类型：切断输出 ; 复位：自动恢复 (Type: cut output; Reset: automatic recovery)
过电压保护 Over-voltage protection CH1:115%~135%
启动、上升保持时间 Startup, rise hold time 200ms 100ms 30ms
耐压性 Withstand voltage 输入输出间 IP-O/P: 1.5KVAC, 输入与外壳间丨 /P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC - 分钟 (1 minute)
隔离电阻 Isolation resistance 输入输出间 I/P-Q/P, 输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~60℃ 20%~90%RH
安全标准 Safety standard 符合 (Design refer)GB4943，UL60950, EN60950
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A

D-300W D-350W

● 单组输出：功率 300W ● 单组输出：功率 350W
Single output: power 300W Single output: power 350W
● 输入电压：110/220VAC ● 输入电压：110/220VAC
Input voltage range: 110/220VAC Input voltage range: 110/220VAC
● 输出电压：5~24VDC ● 输出电压：5~24VDC
Size:215×115×50mm Export voltage: 5~24VDC Size:215×115×50mm Export voltage: 5~24VDC
Weight:0.9Kg Weight:0.9Kg

主要技术参数 Main technical parameters
D-300A D-300B D-300C D-350A D-350B D-350C
型号 Model
CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2
直流输出电压、电流 DC output voltage, current 5V 30A 12V 12.5A 5V 30A 24V 6.2A 12V 12.5A 24V 6.2A 5V 35A 12V 14.5A 5V 35A 24V 7.3A 12V 14.5A 24V 7.3A
纹波及噪音 Wave and niose 50mVp-p 75mVp-p 50mVp-p 100mVp-p 50mVp-p 100mVp-p 50mVp-p 75mVp-p 50mVp-p 100mVp-p 50mVp-p 100mVp-p
进线稳定度 Inlet stability ±0.5% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±1% ±0.5% ±0.5% ±0.5% ±0.5%
负载稳定度 Load stability ±0.5% ±5% ±0.5% ±8% ±0.5% ±8% ±0.5% ±5% ±0.5% ±8% ±0.5% ±8%
效率 Effectiveness 80% 82% 84% 80% 82% 84%
直流电压可调范围 Adjustable for DC voltage CH1:+10,-5% CH1:+10,-5% CH1:+10,-5% CH1:+10,-5% CH1:+10,-5% CH1:+10,-5%
输入电流 Input Current 6.5A/110V 3.5A/230VAC 2.2A/110V 1.1A/230VAC
输入电压范围 AC Input voltage range 85-132VAC/170-264VAC 由开关选择 {Selected by swith) 47 〜 63Hz, 240~370VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 30A/115VAC 60A/230V
过载保护 Overload protection 105%~130% 类型：切断输出；复位：自动恢 S(Type: cut output; Reset: automatic recovery)
过电压保护 Over-voltage protection CH1:115%~135%
启动、上升保持时间 Startup, rise hold time 200ms 100ms 30ms
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC 一分钟 (1 minut）
隔离电阻 Isolation resistance 输入输出间 I/P-Q/P, 输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~60℃ 20%~90%RH
安全标准 Safety standard 符合 (Design refer)GB4943，UL60950, EN60950
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A
