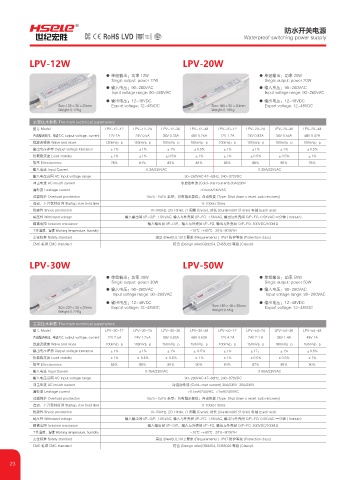

防水开关电源
R
(0& Waterproof switching power supply
UFTUFE
Gemary
LPV-12W LPV-20W

● 单组输出：功率 12W ● 单组输出：功率 20W
Single output: power 12W Single output: power 20W
● 输入电压：90~260VAC ● 输入电压：90~260VAC
Input voltage range: 90~260VAC Input voltage range: 90~260VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:135×30×20mm Export voltage: 12~48VDC Size:180×30×20mm Export voltage: 12~48VDC
Weight:0.12Kg Weight:0.19Kg

主要技术参数 The main technical parameters
型号 Model LPV-12-12 LPV-12-24 LPV-12-36 LPV-12-48 LPV-20-12 LPV-20-24 LPV-20-36 LPV-20-48
直流输出电压、电流 DC output voltage, current 12V 1A 24V 0.5A 36V 0.33A 48V 0.25A 12V 1.7A 24V 0.83A 36V 0.55A 48V 0.42A
纹波及噪音 Wave and niose 120mVp-p 150mVp-p 150mVp-p 150mVp-p 100mVp-p 100mVp-p 150mVp-p 150mVp-p
输出电压差容 Output voltage tolerance ±1% ±1% ±1% ±0.5% ±1% ±1% ±1% ±0.5%
负载稳定度 Load stability ±1% ±1% ±0.5% ±1% ±1% ±0.5% ±0.5% ±1%
效率 Effectiveness 78% 81% 83% 84% 85% 88% 90% 76%
输入电流 Input Current 0.3A/230VAC 0.35A/230VAC
输入电压范围 AC Input voltage range 90~260VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 30A/230V
漏电流 Leakage current <0.5mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements ) IP67 防护等级 (Protection class)
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A

LPV-30W LPV-50W

● 单组输出：功率 30W ● 单组输出：功率 50W
Single output: power 30W Single output: power 50W
● 输入电压：90~260VAC ● 输入电压：90~260VAC
Input voltage range: 90~260VAC Input voltage range: 90~260VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:220×30×20mm Export voltage: 12~48VDC Size:189×48×38mm Export voltage: 12~48VDC
Weight:0.22Kg Weight:0.5Kg
主要技术参数 The main technical parameters
型号 Model LPV-30-12 LPV-30-24 LPV-30-36 LPV-30-48 LPV-50-12 LPV-50-24 LPV-50-36 LPV-50-48
直流输出电压、电流 DC output voltage, current 12V 2.5A 24V 1.25A 36V 0.83A 48V 0.63A 12V 4.2A 24V 2.1 A 36V 1.4A 48V 1A
纹波及噪音 Wave and niose 100mVp-p 100mVp-p 150mVp-p 150mVp-p 100mVp-p 150mVp-p 180mVp-p 150mVp-p
输出电压差容 Output voltage tolerance ±1% ±1% ±1% ± 0.5% ±1% ±17。 ±1% ±0.5%
负载稳定度 Load stability ±1% ± 0.5% ± 0.5% ± 1% ±1% ±0.5% ±0.5% ±1%
效率 Effectiveness 85% 88% 90% 90% 84% 87% 90% 90%
输入电流 Input Current 0.45A/230VAC 0.65A/230VAC
输入电压范围 AC Input voltage range 90~260VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 30A/230V 35A/230V
漏电流 Leakage current <0.5mA/240VAC <1mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements ) IP67 防护等级 (Protection class)
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A
