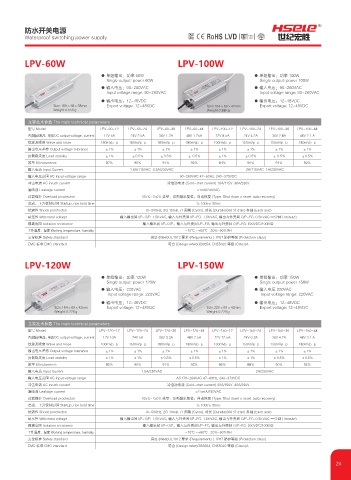

防水开关电源
R
Waterproof switching power supply Gemary (0&
UFTUFE

LPV-60W LPV-100W

● 单组输出：功率 60W ● 单组输出：功率 100W
Single output: power 60W Single output: power 100W
● 输入电压：90~260VAC ● 输入电压：90~260VAC
Input voltage range: 90~260VAC Input voltage range: 90~260VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:189×48×38mm Export voltage: 12~48VDC Size:184×69×42mm Export voltage: 12~48VDC
Weight:0.55Kg Weight:0.88Kg

主要技术参数 The main technical parameters
型号 Model LPV-60-12 LPV-60-24 LPV-60-36 LPV-60-48 LPV-100-12 LPV-100-24 LPV-100-36 LPV-100-48
直流输出电压、电流 DC output voltage, current 12V 5A 24V 2.5A 36V 1.7A 48V 1.25A 12V 8.5A 24V 4.2A 36V 2.8A 48V 2.1 A
纹波及噪音 Wave and niose 150mVp-p 180mVp-p 180mVp-p 180mVp-p 100mVp-p 150mVp-p 150mVp-p 180mVp-p
输出电压差容 Output voltage tolerance ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
负载稳定度 Load stability ±1% ±0.5% ±0.5% ± 0.5% ±1% ±0.5% ± 0.5% ±0.5%
效率 Effectiveness 87% 90% 91% 92% 84% 90% 91% 92%
输入电流 Input Current 1.6A/115VAC 0.5A/230VAC 2A/115VAC 1A/230VAC
输入电压范围 AC Input voltage range 90~260VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 18A/115V 36A/230V
漏电流 Leakage current <1mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements ) IP67 防护等级 (Protection class)
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A

LPV-120W LPV-150W

● 单组输出：功率 120W ● 单组输出：功率 150W
Single output: power 120W Single output: power 150W
● 输入电压：90~260VAC ● 输入电压：220VAC ● 输入电压 220VAC
Input voltage range: 90~260VAC Input voltage range: 220VAC Input voltage range: 220VAC
● 输出电压：12~48VDC ● 输出电压：12~48VDC
Size:184×69×42mm Export voltage: 12~48VDC Size:220×69×42mm Export voltage: 12~48VDC
Weight:0.22Kg Weight:0.22Kg
主要技术参数 The main technical parameters
型号 Model LPV-120-12 LPV-120-24 LPV-120-36 LPV-120-48 LPV-150-12 LPV-150-24 LPV-150-36 LPV-150-48
直流输出电压、电流 DC output voltage, current 12V 10A 24V 5A 36V 3.3A 48V 2.5A 12V 12.5A 24V 6.3A 36V 4.2A 48V 3.1 A
纹波及噪音 Wave and niose 100mVp-p 150mVp-p 180mVp-p 180mVp-p 100mVp-p 150mVp-p 150mVp-p 180mVp-p
输出电压差容 Output voltage tolerance ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
负载稳定度 Load stability ±1% ±1% ±0.5% ±0.5% ±1% ±1% ±0.5% ±0.5%
效率 Effectiveness 85% 90% 91% 92% 85% 88% 90% 92%
输入电流 Input Current 1.5A/230VAC 2A/230VAC
输入电压范围 AC Input voltage range AC170~264VAC 47~63Hz, 240~373VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 20A/150V 40A/230V
漏电流 Leakage current <2.5mA/240VAC
过载保护 Overload proctecton 105%~150% 类型：切断输出复位：自动恢复 (Type: Shut down o reset: auto recovery)
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
抗震性 Shock proctecton 10~500Hz, 2G 10min, /1 周期 (Cycle), 时长 (Duration)60 分 (min) 各轴 (Each axis)
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃ 20%~90%RH
安全标准 Safety standard 满足 (Meet)UL1012 要求 (Requirements ) IP67 防护等级 (Protection class)
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A
