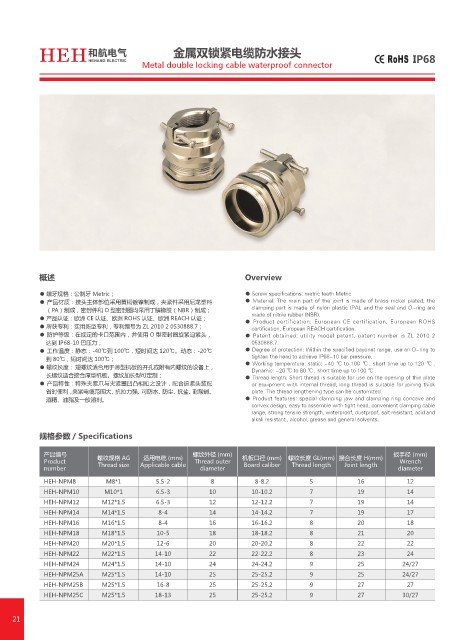

HEH 和航电气 金属双锁紧电缆防水接头
HEHANG ELECTRIC
Metal double locking cable waterproof connector

概述 Overview

● 螺牙规格：公制牙 Metric； ● Screw specifications: metric teeth Metric
● 产品材质：接头主体部位采用黄铜镀镍制成，夹紧件采用尼龙塑料 ● Material: The main part of the joint is made of brass nickel plated, the
（PA）制成，密封件和 O 型密封圈均采用丁腈橡胶（NBR）制成； clamping part is made of nylon plastic (PA), and the seal and O-ring are
made of nitrile rubber (NBR).
● 产品认证：欧洲 CE 认证、欧洲 ROHS 认证、欧洲 REACH 认证； ● Product certification: European CE certification, European ROHS
● 所获专利：实用新型专利，专利编号为 ZL 2010 2 0530888.7； certification, European REACH certification.
● 防护等级：在规定的卡口范围内，并使用 O 型密封圈旋紧迫紧头， ● Patent obtained: utility model patent, patent number is ZL 2010 2
达到 IP68-10 巴压力； 0530888.7.
● 工作温度：静态：-40℃到 100℃，短时间达 120℃。动态：-20℃ ● Degree of protection: Within the specified bayonet range, use an O-ring to
到 80℃，短时间达 100℃； tighten the head to achieve IP68-10 bar pressure.
● 螺纹长度： 短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上， ● Working temperature: static: -40 ℃ to 100 ℃ , short time up to 120 ℃ .
Dynamic: -20 ℃ to 80 ℃ , short time up to 100 ℃ .
长螺纹适合接合厚型机板。螺纹加长型可定制； ● Thread length: Short thread is suitable for use on the opening of thin plate
● 产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配 or equipment with internal thread, long thread is suitable for joining thick
省时便利，夹紧电缆范围大、抗拉力强、可防水、防尘、抗盐、耐酸碱、 plate. The thread lengthening type can be customized.
酒精、油脂及一般溶剂。 ● Product features: special clamping jaw and clamping ring concave and
convex design, easy to assemble with tight head, convenient clamping cable
range, strong tensile strength, waterproof, dustproof, salt resistant, acid and
alkali resistant , alcohol, grease and general solvents.
规格参数 / Specifications

产品编号 螺纹规格 AG 适用电缆 (mm) 螺纹外径 (mm) 机板口径 (mm) 螺纹长度 GL(mm) 接合长度 H(mm) 扳手径 (mm)
Product Thread size Applicable cable Thread outer Board caliber Thread length Joint length Wrench
number diameter diameter
HEH-NPM8 M8*1 5.5-2 8 8-8.2 5 16 12
HEH-NPM10 M10*1 6.5-3 10 10-10.2 7 19 14
HEH-NPM12 M12*1.5 6.5-3 12 12-12.2 7 19 14
HEH-NPM14 M14*1.5 8-4 14 14-14.2 7 19 17
HEH-NPM16 M16*1.5 8-4 16 16-16.2 8 20 18
HEH-NPM18 M18*1.5 10-5 18 18-18.2 8 21 20
HEH-NPM20 M20*1.5 12-6 20 20-20.2 8 22 22
HEH-NPM22 M22*1.5 14-10 22 22-22.2 8 23 24
HEH-NPM24 M24*1.5 14-10 24 24-24.2 9 25 24/27
HEH-NPM25A M25*1.5 14-10 25 25-25.2 9 25 24/27
HEH-NPM25B M25*1.5 16-8 25 25-25.2 9 27 27
HEH-NPM25C M25*1.5 18-13 25 25-25.2 9 27 30/27
