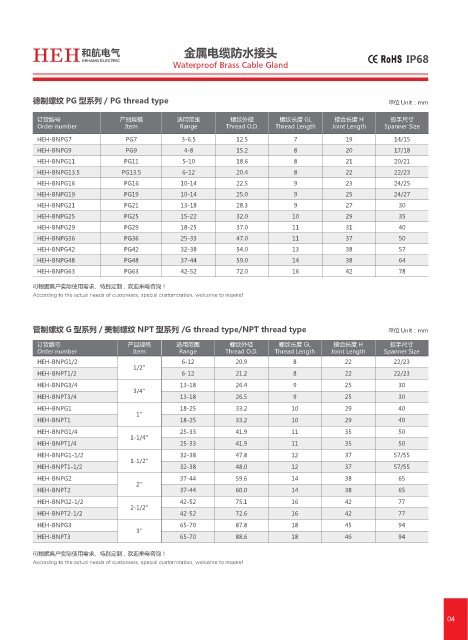

HEH 和航电气 金属电缆防水接头
HEHANG ELECTRIC
Waterproof Brass Cable Gland

德制螺纹 PG 型系列 / PG thread type 单位 Unit：mm

订货编号 产品规格 适用范围 螺纹外径 螺纹长度 GL 接合长度 H 扳手尺寸
Order number Item Range Thread O.D. Thread Length Joint Length Spanner Size
HEH-BNPG7 PG7 3-6.5 12.5 7 19 14/15
HEH-BNPG9 PG9 4-8 15.2 8 20 17/18
HEH-BNPG11 PG11 5-10 18.6 8 21 20/21
HEH-BNPG13.5 PG13.5 6-12 20.4 8 22 22/23
HEH-BNPG16 PG16 10-14 22.5 9 23 24/25
HEH-BNPG19 PG19 10-14 25.0 9 25 24/27
HEH-BNPG21 PG21 13-18 28.3 9 27 30
HEH-BNPG25 PG25 15-22 32.0 10 29 35
HEH-BNPG29 PG29 18-25 37.0 11 31 40
HEH-BNPG36 PG36 25-33 47.0 11 37 50
HEH-BNPG42 PG42 32-38 54.0 13 38 57
HEH-BNPG48 PG48 37-44 59.0 14 38 64
HEH-BNPG63 PG63 42-52 72.0 16 42 78

可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!

管制螺纹 G 型系列 / 美制螺纹 NPT 型系列 /G thread type/NPT thread type 单位 Unit：mm

订货编号 产品规格 适用范围 螺纹外径 螺纹长度 GL 接合长度 H 扳手尺寸
Order number Item Range Thread O.D. Thread Length Joint Length Spanner Size
HEH-BNPG1/2 6-12 20.9 8 22 22/23
1/2''
HEH-BNPT1/2 6-12 21.2 8 22 22/23
HEH-BNPG3/4 13-18 26.4 9 25 30
3/4''
HEH-BNPT3/4 13-18 26.5 9 25 30
HEH-BNPG1 18-25 33.2 10 29 40
1''
HEH-BNPT1 18-25 33.2 10 29 40
HEH-BNPG1/4 25-33 41.9 11 35 50
1-1/4''
HEH-BNPT1/4 25-33 41.9 11 35 50
HEH-BNPG1-1/2 32-38 47.8 12 37 57/55
1-1/2''
HEH-BNPT1-1/2 32-38 48.0 12 37 57/55
HEH-BNPG2 37-44 59.6 14 38 65
2''
HEH-BNPT2 37-44 60.0 14 38 65
HEH-BNPG2-1/2 42-52 75.1 16 42 77
2-1/2''
HEH-BNPT2-1/2 42-52 72.6 16 42 77
HEH-BNPG3 65-70 87.8 18 45 94
3''
HEH-BNPT3 65-70 88.6 18 46 94

可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
