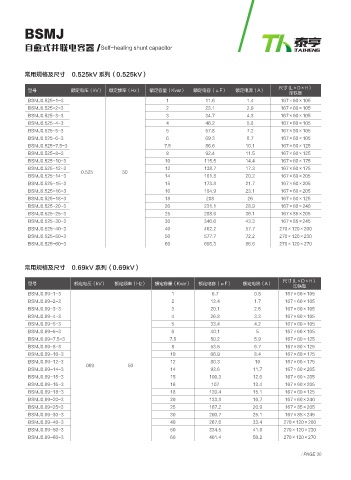

BSMJ

自愈式并联电容器 / Self-healing shunt capacitor

常用规格及尺寸 0.525kV 系列（0.525kV）

尺寸 (L×D×H）
型号 额定电压（kV） 额定频率（Hz） 额定容量（Kvar） 额定电容（μF） 额定电流（A）
印铁型
BSMJ0.525-1-3 1 11.6 1.4 167×60×105
BSMJ0.525-2-3 2 23.1 2.9 167×60×105
BSMJ0.525-3-3 3 34.7 4.3 167×60×105
BSMJ0.525-4-3 4 46.2 5.8 167×60×105
BSMJ0.525-5-3 5 57.8 7.2 167×60×105
BSMJ0.525-6-3 6 69.3 8.7 167×60×105
BSMJ0.525-7.5-3 7.5 86.6 10.1 167×60×125
BSMJ0.525-8-3 8 92.4 11.5 167×60×125
BSMJ0.525-10-3 10 115.5 14.4 167×60×175
BSMJ0.525-12-3 12 138.7 17.3 167×60×175
0.525 50
BSMJ0.525-14-3 14 161.8 20.2 167×60×205
BSMJ0.525-15-3 15 173.8 21.7 167×60×205
BSMJ0.525-16-3 16 184.9 23.1 167×60×205
BSMJ0.525-18-3 18 208 26 167×60×125
BSMJ0.525-20-3 20 231.1 28.9 167×60×240
BSMJ0.525-25-3 25 288.9 36.1 167×85×205
BSMJ0.525-30-3 30 346.6 43.3 167×85×245
BSMJ0.525-40-3 40 462.2 57.7 270×120×200
BSMJ0.525-50-3 50 577.7 72.2 270×120×230
BSMJ0.525-60-3 60 693.3 86.6 270×120×270

常用规格及尺寸 0.69kV 系列（0.69kV）

尺寸 (L×D×H）
型号 额定电压（kV） 额定频率（Hz） 额定容量（Kvar） 额定电容（μF） 额定电流（A）
印铁型
BSMJ0.69-1-3 1 6.7 0.8 167×60×105
BSMJ0.69-2-3 2 13.4 1.7 167×60×105
BSMJ0.69-3-3 3 20.1 2.5 167×60×105
BSMJ0.69-4-3 4 26.8 3.3 167×60×105
BSMJ0.69-5-3 5 33.4 4.2 167×60×105
BSMJ0.69-6-3 6 40.1 5 167×60×105
BSMJ0.69-7.5-3 7.5 50.2 5.9 167×60×125
BSMJ0.69-8-3 8 53.5 6.7 167×60×125
BSMJ0.69-10-3 10 66.9 8.4 167×60×175
BSMJ0.69-12-3 12 80.3 10 167×60×175
069 50
BSMJ0.69-14-3 14 93.6 11.7 167×60×205
BSMJ0.69-15-3 15 100.3 12.6 167×60×205
BSMJ0.69-16-3 16 107 13.4 167×60×205
BSMJ0.69-18-3 18 120.4 15.1 167×60×125
BSMJ0.69-20-3 20 133.8 16.7 167×60×240
BSMJ0.69-25-3 25 167.2 20.9 167×85×205
BSMJ0.69-30-3 30 200.7 25.1 167×85×245
BSMJ0.69-40-3 40 267.6 33.4 270×120×200
BSMJ0.69-50-3 50 334.5 41.8 270×120×230
BSMJ0.69-60-3 60 401.4 50.2 270×120×270

/ PAGE 30
