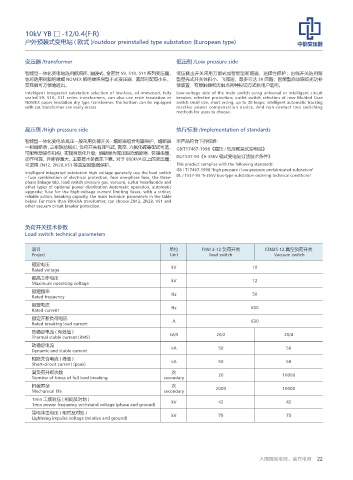

10kV YB □ -12/0.4(F·R)
          户外预装式变电站 ( 欧式 )/outdoor preinstalled type substation (European type)


          变压器 /transformer                                   低压侧 /Low pressure side

          智能型一体化变电站选用低损耗、油浸式、全密封 S9、S10、S11 系列变压器， 低压侧主开关采用万能式或智能型断路器，选择性保护；出线开关选用新
          也可选用树脂绝缘或 NOMEX 纸绝缘环保型干式变压器，底部可配有小车，               型塑壳式开关体积小、飞弧短，最多可达 30 回路；智能型自动跟踪无功补
          变压器可方便地进出。                                         偿装置，有接触器和无触点两种投切方式供用户选用。
          Intelligent integrated substation selection of low-loss, oil-immersed, fully  Low-voltage side of the main switch using universal or intelligent circuit
          sealed S9, S10, S11 series transformers, can also use resin insulation or  breaker, selective protection; outlet switch selection of new Molded Case
          NOMEX paper insulation dry type transformer, the bottom can be equipped  switch small size, short arcing, up to 30 loops; intelligent automatic tracking
          with car, transformer can easily access.           reactive power compensation device, And non-contact two switching
                                                             methods for users to choose.


          高压侧 /High pressure side                            执行标准 /Implementation of standards
          智能型一体化变电站高压一般采用负荷开关 - 熔断器组合电器保护，熔断器                本产品符合下列标准：
          一相熔断后，三相联动脱扣，负荷开关有压气式、真空、六氟化硫等型式可选，                GB/T17467-1998《高压 / 低压预装式变电站》
          可配电动操作机构，实现自动化升级；熔断器为高压限流熔断器，带撞击器，                 DL/T537-93《6-35kV 箱式变电站订货技术条件》
          动作可靠，开断容量大，主要技术参数见下表。对于 800kVA 以上的变压器，
          可选用 ZN12, ZN28,VS1 等真空断路器保护。                       This product complies with the following standards:
                                                             GB / T17467-1998 "high pressure / low pressure prefabricated substation"
          Intelligent integrated substation high voltage generally use the load switch
          - fuse combination of electrical protection, fuse one-phase fuse, the three-  DL / T537-93 "6-35kV box-type substation ordering technical conditions"
          phase linkage trip, load switch pressure gas, vacuum, sulfur hexafluoride and
          other types of optional power distribution Automatic operation, automatic
          upgrade; fuse for the high-voltage current limiting fuses, with a striker,
          reliable action, breaking capacity, the main technical parameters in the table
          below. For more than 800kVA transformer, can choose ZN12, ZN28, VS1 and
          other vacuum circuit breaker protection.


          负荷开关技术参数
          Load switch technical parameters


            项目                                            单位         FKN12-12 负荷开关        FZN25-12 真空负荷开关
            Project                                       Unit          load switch           Vacuum switch
            额定电压
            Rated voltage                                  kV                         10
            最高工作电压
            Maximum operating voltage                      kV                         12
            额定频率                                           Hz                         50
            Rated frequency
            额定电流                                           Hz                         630
            Rated current
            额定开断负荷电流
            Rated breaking load current                    A                          630
            热稳定电流 ( 有效值 )                                 kA/S            20/2                   20/4
            Thermal stable current (RMS)
            动稳定电流                                          kA              50                     50
            Dynamic and stable current
            短路关合电流 ( 峰值 )
            Short-circuit current (peak)                   kA              50                     50
            满负荷开断次数                                        次               20                   10000
            Number of times of full load breaking       secondary
            机械寿命                                           次              2000                  10000
            Mechanical life                             secondary
            1min 工频耐压 ( 相间及对地 )
            1min power frequency withstand voltage (phase and ground)  kV  42                     42
            雷电冲击电压 ( 相对及对地 )                               kV              75                     75
            Lightning impulse voltage (relative and ground)
