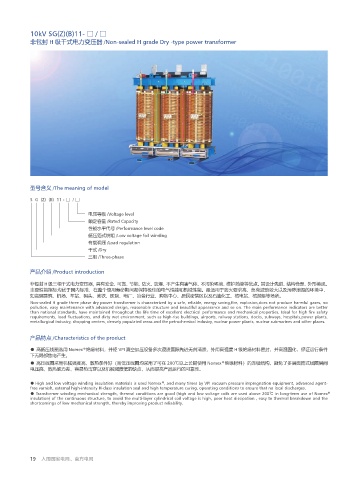

10kV SG(Z)(B)11- □ / □
非包封 H 级干式电力变压器 /Non-sealed H grade Dry -type power transformer

型号含义 /The meaning of model

S G (Z) (B) 11 - □ / □
电压等级 /Voltage level
额定容量 /Rated Capacity
性能水平代号 /Performance level code
低压箔式绕组 /Low voltage foil winding
有载调压 /Load regulation
干式 /Dry
三相 /Three-phase
产品介绍 /Product introduction

非包封 H 级三相干式电力变压器，具有安全、可靠、节能、防火、防爆、不产生有害气体、不污染环境、维护简单等优点。其设计先进、结构合理、外形美观。
主要性能指标均优于国内标准，在整个使用寿命期间都保持极佳的电气性能和机械性能。最适用于防火要求高、负荷波动较大以及污秽潮湿的环境中，
如高层建筑、机场、车站、码头、地铁、医院、电厂、冶金行业、购物中心、居民密集区以及石油化工、核电站、核潜艇等场所。
Non-sealed H grade three phase dry power transformer is characterized by a safe, reliable, energy saving,fire, explosion,does not produce harmful gases, no
pollution, easy maintenance with advanced design, reasonable structure and beautiful appearance and so on. The main performance indicators are better
than national standards, have maintained throughout the life time of excellent electrical performance and mechanical properties. Ideal for high fire safety
requirements, load fluctuations, and dirty wet environment, such as high-rise buildings, airports, railway stations, docks, subways, hospitals,power plants,
metallurgical industry, shopping centers, densely populated areas and the petrochemical industry, nuclear power plants, nuclear submarines and other places.

产品特点 /Characteristics of the product

● 高低压线圈选用 Nomex 绝缘材料，并经 VPI 真空加压设备多次浸渍国际先进无剂清漆，外用高强度 H 级绝缘材料密封，并高温固化，保证运行条件
下无局部放电产生。
● 高压线圈采用机械强度高，散热条件好（高低压线圈均采用了可在 200℃以上长期使用 Nomex 绝缘材料）的连续结构，避免了多层圆筒式线圈层间
电压高、散热能力差、容易热击穿以及机械强度低的缺点，从而提高产品运行的可靠性。

● High and low voltage winding insulation materials is used Nomex , and many times by VPI vacuum pressure impregnation equipment, advanced agent-
free varnish, external high-intensity H-class insulation seal and high temperature curing, operating conditions to ensure that no local discharges.
● Transformer winding mechanical strength, thermal conditions are good (high and low voltage coils are used above 200℃ in long-term use of Nomex
insulation) of the continuous structure, to avoid the multi-layer cylindrical coil voltage is high, poor heat dissipation , easy to thermal breakdown and the
shortcomings of low mechanical strength, thereby improving product reliability.
