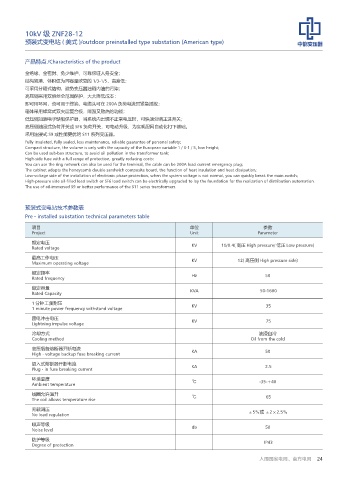

10kV 级 ZNF28-12
          预装式变电站 ( 美式 )/outdoor preinstalled type substation (American type)


          产品特点 /Characteristics of the product

          全绝缘、全密封、免少维护、可靠保证人身安全；
          结构紧凑、体积仅为同容量欧变的 1/3-1/5，高度低；
          可采用分箱式结构，避免变压器油箱内油的污染；
          高压侧采用双熔丝全范围保护，大大降低成本：
          即可用环网，也可用于终端，电缆头可在 200A 负荷电流时紧急插拔；
          箱体采用蜂窝式双夹层复合板，隔温又散热的功能；
          低压侧加装电子缺相保护器，当系统内出现不正常电压时，可快速分断主进开关；
          高压侧油浸式负荷开关或 SF6 负荷开关，可电动升级，为实现配网自动化打下基础。
          采用油浸式 S9 或性能更优的 S11 系列变压器。
          Fully insulated, fully sealed, less maintenance, reliable guarantee of personal safety;
          Compact structure, the volume is only with the capacity of the European variable 1 / 3-1 / 5, low height;
          Can be used sub-box structure, to avoid oil pollution in the transformer tank;
          High-side fuse with a full range of protection, greatly reducing costs:
          You can use the ring network can also be used for the terminal, the cable can be 200A load current emergency plug;
          The cabinet adopts the honeycomb double sandwich composite board, the function of heat insulation and heat dissipation;
          Low-voltage side of the installation of electronic phase protection, when the system voltage is not normal, you can quickly break the main switch;
          High-pressure side oil-filled load switch or SF6 load switch can be electrically upgraded to lay the foundation for the realization of distribution automation.
          The use of oil-immersed S9 or better performance of the S11 series transformers.


          预装式变电站技术参数表
          Pre - installed substation technical parameters table
            项目                                                   单位                       参数
            Project                                              Unit                   Parameter
            额定电压                                                  KV        10/0.4( 高压 High pressure/ 低压 Low pressure)
            Rated voltage
            最高工作电压
            Maximum operating voltage                             KV             12( 高压侧 High pressure side)
            额定频率                                                  Hz                      50
            Rated frequency
            额定容量
            Rated Capacity                                       KVA                     50-1600
            1 分钟工频耐压                                              KV                       35
            1 minute power frequency withstand voltage
            雷电冲击电压
            Lightning impulse voltage                             KV                       75
            冷却方式                                                                        油浸自冷
            Cooling method                                                            Oil from the cold
            高压后备熔断器开断电流
            High - voltage backup fuse breaking current           KA                      50
            插入式熔断器开断电流                                            KA                       2.5
            Plug - in fuse breaking current
            环境温度
            Ambient temperature                                   ℃                     -35-+40
            线圈允许温升                                                ℃                        65
            The coil allows temperature rise
            无载调压
            No load regulation                                                       ±5％或 ±2×2.5％
            噪声等级                                                  db                      50
            Noise level
            防护等级
            Degree of protection                                                           IP43
