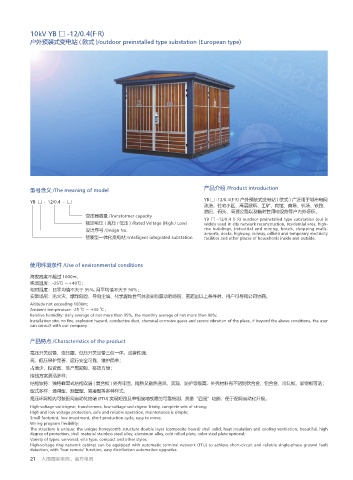

10kV YB □ -12/0.4(F·R)
户外预装式变电站 ( 欧式 )/outdoor preinstalled type substation (European type)

型号含义 /The meaning of model 产品介绍 /Product introduction
YB □ -12/0.4(F·R) 户外预装式变电站 ( 欧式 ) 广泛用于城市电网
YB □ - 12/0.4 - □
改造、住宅小区、高层建筑、工矿、宾馆、商场、机场、铁路、
油田、码头、高速公路以及临时性用电设施等户内外场所。
变压器容量 /Transformer capacity
YB □ -12/0.4 (F·R) outdoor preinstalled type substation (ou) is
额定电压 ( 高压 / 低压 ) /Rated Voltage (High / Low) widely used in city network reconstruction, residential area, high-
设计序号 /Design No. rise buildings, industrial and mining, hotels, shopping malls,
airports, docks, highway, railway, oilfield and temporary electricity
智能型一体化变电站 /Intelligent integrated substation facilities and other places of households inside and outside.

使用环境条件 /Use of environmental conditions

海拔高度不超过 1000m；
环境温度：-25℃ ~+40℃；
相对湿度：日平均值不大于 95%, 月平均值不大于 90%；
安装场所：无火灾、爆炸危险、导电尘埃、化学腐蚀性气体及剧烈震动的场所，若超出以上条件时，用户可与我公司协商。
Altitude not exceeding 1000m;
Ambient temperature: -25 ℃ ~ +40 ℃ ;
Relative humidity: daily average of not more than 95%, the monthly average of not more than 90%;
Installation site: no fire, explosion hazard, conductive dust, chemical corrosive gases and severe vibration of the place, if beyond the above conditions, the user
can consult with our company.

产品特点 /Characteristics of the product

高压开关设备、变压器、低压开关设备三位一体，成套性强；
高、低压保护完善，运行安全可靠，维护简单；
占地少，投资省、生产周期短、移动方便；
接线方案灵活多样；
结构独特：独特蜂窝式结构双层 ( 复合板 ) 外壳牢固，隔热又散热通风、美观、防护等级高，外壳材料有不锈钢钦合金、铝合金、冷轧板、彩钢板可选；
型式多样：通用型、别墅型、紧凑型等多种样式；
高压环网柜内可装配网自动化终端 (FTU) 实现短路及单相接地故障的可靠检测，具备“四遥”功能，便于配网自动化升级。
High-voltage switchgear, transformers, low-voltage switchgear Trinity, complete sets of strong;
High and low voltage protection, safe and reliable operation, maintenance is simple;
Small footprint, low investment, short production cycle, easy to move;
Wiring program flexibility;
The structure is unique: the unique honeycomb structure double layer (composite board) shell solid, heat insulation and cooling ventilation, beautiful, high
degree of protection, shell material stainless steel alloy, aluminum alloy, cold rolled plate, color steel plate optional;
Variety of types: universal, villa type, compact and other styles;
High-voltage ring network cabinet can be equipped with automatic terminal network (FTU) to achieve short-circuit and reliable single-phase ground fault
detection, with "four remote" function, easy distribution automation upgrades.
