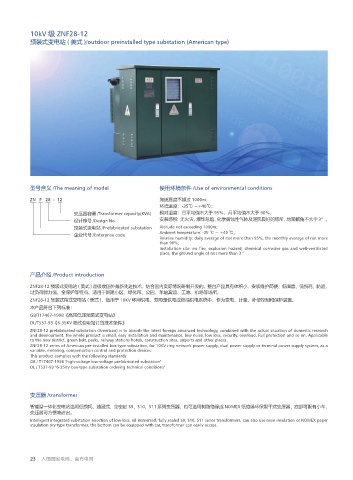

Page 40 - 山东中能变压器制造有限公司

10kV 级 ZNF28-12
预装式变电站 ( 美式 )/outdoor preinstalled type substation (American type)

型号含义 /The meaning of model 使用环境条件 /Use of environmental conditions
ZN F 28 - 12 海拔高度不超过 1000m；
环境温度：-35℃ ~+40℃；
变压器容量 /Transformer capacity(KVA) 相对湿度：日平均值不大于 95％，月平均值不大于 90％；
设计序号 /Design No. 安装场所：无火灾、爆炸危险、化学腐蚀性气体及通风良好的场所，地面倾角不大于 3°。
预装式变电站 /Prefabricated substation Altitude not exceeding 1000m;
Ambient temperature: -35 ℃ ~ +40 ℃ ;
企业代号 /Enterprise code
Relative humidity: daily average of not more than 95%, the monthly average of not more
than 90%;
Installation site: no fire, explosion hazard, chemical corrosive gas and well-ventilated
place, the ground angle of not more than 3 ° .

产品介绍 /Product introduction

ZNF28-12 预装式变电站 ( 美式 ) 是吸收国外最新先进技术，结合国内实际情况研制开发的，整台产品具有体积小、安装维护简便、低噪音、低损耗、防盗、
过负荷能力强、全保护等特点。适用于新建小区、绿化带、公园、车站宾馆、工地、机场等场所。
ZNF28-12 预装式箱式变电站 ( 美式 )，适用于 10KV 环网供电，双电源供电或终端供电系统中，作为变电、计量、补偿控制和保护装置。
本产品符合下列标准：
GB/T17467-1998《高压低压预装式变电站》
DL/T537-93《6-35KV 箱式变电站订货技术条件》
ZNF28-12 prefabricated substation (American) is to absorb the latest foreign advanced technology, combined with the actual situation of domestic research
and development, the whole product is small, easy installation and maintenance, low noise, low loss, security, overload, Full protection and so on. Applicable
to the new district, green belt, parks, railway stations hotels, construction sites, airports and other places.
ZNF28-12 series of American pre-installed box-type substation, for 10KV ring network power supply, dual power supply or terminal power supply system, as a
variable, metering, compensation control and protection devices.
This product complies with the following standards:
GB / T17467-1998 "high-voltage low-voltage prefabricated substation"
DL / T537-93 "6-35KV box-type substation ordering technical conditions"

变压器 /transformer

智能型一体化变电站选用低损耗、油浸式、全密封 S9、S10、S11 系列变压器，也可选用树脂绝缘或 NOMEX 纸绝缘环保型干式变压器，底部可配有小车，
变压器可方便地进出。
Intelligent integrated substation selection of low-loss, oil-immersed, fully sealed S9, S10, S11 series transformers, can also use resin insulation or NOMEX paper
insulation dry type transformer, the bottom can be equipped with car, transformer can easily access.
