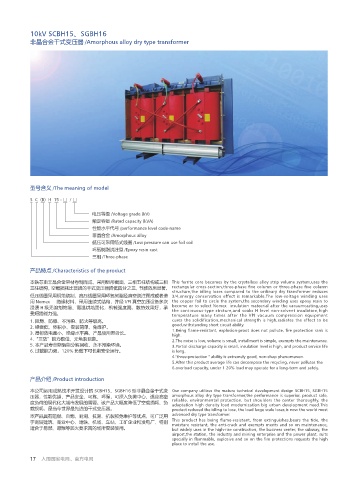

Page 34 - 山东中能变压器制造有限公司

10kV SCBH15、SGBH16
非晶合金干式变压器 /Amorphous alloy dry type transformer
型号含义 /The meaning of model
S C (B) H 15 - □ / □
电压等级 /Voltage grade (kV)
额定容量 /Rated capacity (kVA)
性能水平代号 /performance level code-name
非晶合金 /Amorphous alloy
低压可采用箔式线圈 /Low pressure can use foil coil
环氧树脂浇注型 /Epoxy resin cast
三相 /Three-phase
产品特点 /Characteristics of the product
本铁芯由非晶合金带材卷制而成，采用矩形截面，三相五柱结构或三相
三柱结构，空载损耗比普通的干式变压器降低四分之三，节能效果显著。
低压线圈采用铜箔绕制，高压线圈采用环氧树脂经真空浇注而成或者选
用 Nomex 绝缘材料，采用连续式结构，并经 VPI 真空加压设备多次
浸渍 H 级无溶剂绝缘、高温烘焙固化，机械强度高，散热效果好，承
受短路能力强。
1. 阻燃、防爆、不污染、防火等级高。
2. 噪音低、体积小、安装简单、免维护。
3. 局部放电量小、绝缘水平高、产品使用寿命长。
4.“三防”能力极佳，无龟裂现象。
5. 本产品寿命期后能分解回收，永不污染环境。
6. 过载能力强，120% 负载下可长期安全运行。
产品介绍 /Product introduction
本公司运用成熟技术开发设计的 SCBH15、SGBH16 型非晶合金干式变
压器，性能优越，产品安全、可靠、环保，可深入负荷中心，适应高密
度负荷的现代化大城市发展的需要。该产品大幅度降低了空载损耗、负
载损耗，是当今世界最先进的干式变压器。
本产品具有阻燃、自熄、耐潮、抗潮、抗裂和免维护等优点，可广泛用
于高层建筑、商业中心、地铁、机场、车站、工矿企业和发电厂，特别
适合于易燃、易爆等防火要求高的场所安装使用。
17 入围国家电网、南方电网
This ferrite core becomes by the crystalless alloy strip volume system,uses the
rectangular cross-section,three-phase five column or three-phase five column
structure,the idling loses compared to the ordinary dry transformer reduces
3/4,energy conservation effect is remarkable.The low-voltage winding uses
the copper foil to circle the system,the secondary winding uses epoxy resin to
become or to select Nomex insulation mateerial after the vacuumcasting,uses
the continuous-type strcture,and soaks H level non-solvent insulation,high
temperature many times after the VPI vacuum compression equipment
cures the solidification,mechanical strength is high,radiates the effect to be
good,withstanding short circuit ability.
1.Being flame-resistant, explosion-proot does not pollute, fire protection rank is
high.
2.The noise is low, volume is small, installment is simple, exempts the maintenance.
3.Partial discharge capacity is small, insulation level is high, and product service life
is long.
4."three-protection " ability is extremely good, non-chap phenomenon.
5.After this product average life can decompose the recycling, never pollutes the
6.overload capacity, under 1 20% load may operate for a long-term and safely.
Our company utilizes the mature technical development design SCBH15, SGBH15
amorphous alloy dry type transformer,the performance is superior, product safe,
reliable, environmental protection, but shoulders the center thoroughly, the
adaptation high density load modernization big urban development need.This
product reduced the idling to lose, the load large scale loses,is now the world most
advanced dry type transformer.
This product has being flame-resistant, from extinguishes,bears the tide, the
moisture resistant, the anti-crack and exempts merits and so on maintenance,
but widely uses in the high-rise construction, the business center, the subway, the
airport,the station, the industry and mining enterprise and the power plant, suits
specially in flammable, explosive and so on the fire protections requests the high
place to install the use.
