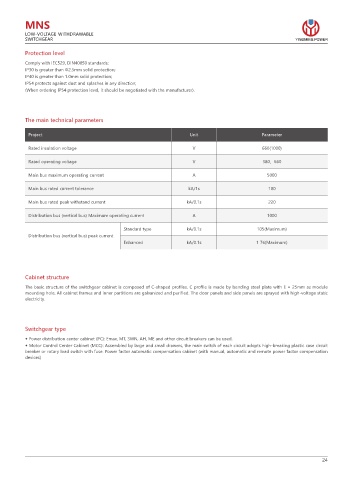

MNS
LOW-VOLTAGE WITHDRAWABLE
SWITCHGEAR YINGMING POWER
Protection level

Comply with IEC529, DIN40050 standards;
IP30 is greater than Φ2.5mm solid protection;
IP40 is greater than 1.0mm solid protection;
IP54 protects against dust and splashes in any direction;
(When ordering lP54 protection level, it should be negotiated with the manufacturer).

The main technical parameters

Project Unit Parameter

Rated insulation voltage V 660(1000)
Rated operating voltage V 380、660

Main bus maximum operating current A 5000

Main bus rated current tolerance kA/1s 100

Main bus rated peak withstand current kA/0.1s 220

Distribution bus (vertical bus) Maximum operating current A 1000

Standard type kA/0.1s 105(Maximum)
Distribution bus (vertical bus) peak current
Enhanced kA/0.1s 1 76(Maximum)

Cabinet structure
The basic structure of the switchgear cabinet is composed of C-shaped profiles. C profile is made by bending steel plate with E = 25mm as module
mounting hole. All cabinet frames and inner partitions are galvanized and purified. The door panels and side panels are sprayed with high-voltage static
electricity.

Switchgear type

◆ Power distribution center cabinet (PC): Emax, MT, 3WN, AH, ME and other circuit breakers can be used.
◆ Motor Control Center Cabinet (MCC): Assembled by large and small drawers, the main switch of each circuit adopts high-breaking plastic case circuit
breaker or rotary load switch with fuse. Power factor automatic compensation cabinet (with manual, automatic and remote power factor compensation
devices)
