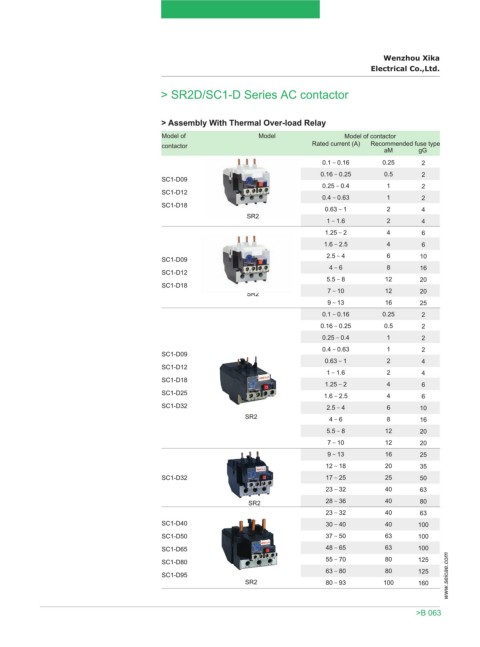

> SR2D/SC1-D Series AC contactor
> Assembly With Thermal Over-load Relay
Model of Model Model of contactor
contactor Rated current (A) Recommended fuse type
aM gG
0.1 0.16 0.25 2
0.16 0.25 0.5 2
SC1-D09
0.25 0.4 1 2
SC1-D12
0.4 0.63 1 2
SC1-D18
0.63 1 2 4
SR2
1 1.6 2 4
1.25 2 4 6
1.6 2.5 4 6
SC1-D09 2.5 4 6 10
4 6 8 16
SC1-D12
5.5 8 12 20
SC1-D18
SR2 7 10 12 20
9 13 16 25
0.1 0.16 0.25 2
0.16 0.25 0.5 2
0.25 0.4 1 2
0.4 0.63 1 2
SC1-D09
0.63 1 2 4
SC1-D12
1 1.6 2 4
SC1-D18
1.25 2 4 6
SC1-D25
1.6 2.5 4 6
SC1-D32 2.5 4 6 10
SR2
4 6 8 16
5.5 8 12 20
7 10 12 20
9 13 16 25
12 18 20 35
SC1-D32 17 25 25 50
23 32 40 63
SR2 28 36 40 80
23 32 40 63
SC1-D40 30 40 40 100
SC1-D50 37 50 63 100
SC1-D65 48 65 63 100
SC1-D80 55 70 80 125
SC1-D95 63 80 80 125 www.seicae.com
SR2 80 93 100 160
