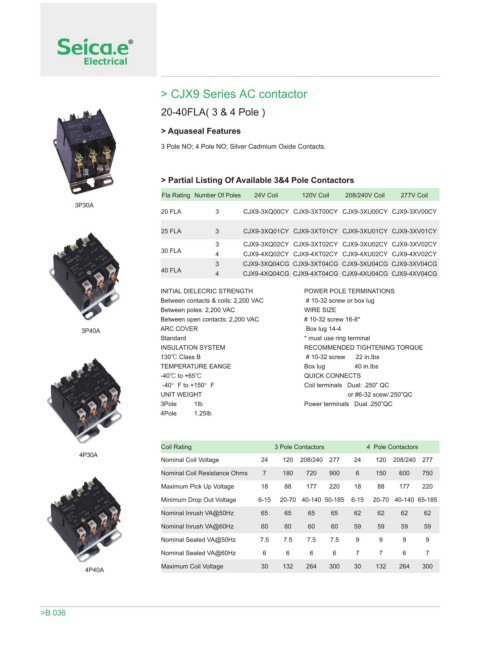

> CJX9 Series AC contactor

20-40FLA( 3 & 4 Pole )

> Aquaseal Features

3 Pole NO; 4 Pole NO; Silver Cadmium Oxide Contacts.

> Partial Listing Of Available 3&4 Pole Contactors
Fla Rating Number Of Poles 24V Coil 120V Coil 208/240V Coil 277V Coil
3P30A
20 FLA 3 CJX9-3XQ00CY CJX9-3XT00CY CJX9-3XU00CY CJX9-3XV00CY

25 FLA 3 CJX9-3XQ01CY CJX9-3XT01CY CJX9-3XU01CY CJX9-3XV01CY
3 CJX9-3XQ02CY CJX9-3XT02CY CJX9-3XU02CY CJX9-3XV02CY
30 FLA 4 CJX9-4XQ02CY CJX9-4XT02CY CJX9-4XU02CY CJX9-4XV02CY
3 CJX9-3XQ04CG CJX9-3XT04CG CJX9-3XU04CG CJX9-3XV04CG
40 FLA 4 CJX9-4XQ04CG CJX9-4XT04CG CJX9-4XU04CG CJX9-4XV04CG

INITIAL DIELECRIC STRENGTH POWER POLE TERMINATIONS
Between contacts & coils: 2,200 VAC # 10-32 screw or box lug
Between poles: 2,200 VAC WIRE SIZE
Between open contacts: 2,200 VAC # 10-32 screw 16-8*
3P40A ARC COVER Box lug 14-4
Standard * must use ring terminal
INSULATION SYSTEM RECOMMENDED TIGHTENING TORQUE
130 Class B # 10-32 screw 22 in.Ibs
TEMPERATURE EANGE Box lug 40 in.Ibs
-40 to +65 QUICK CONNECTS
-40 F to +150 F Coil terminals Dual: .250” QC
UNIT WEIGHT or #6-32 scew/.250”QC
3Pole 1Ib Power terminals Dual .250”QC
4Pole 1.25Ib

Coil Rating 3 Pole Contactors 4 Pole Contactors
4P30A
Nominal Coil Voltage 24 120 208/240 277 24 120 208/240 277
Nominal Coil Resistance Ohms 7 180 720 900 6 150 600 750
Maximum Pick Up Voltage 18 88 177 220 18 88 177 220
Minimum Drop Out Voltage 6-15 20-70 40-140 50-185 6-15 20-70 40-140 65-185
Nominal Inrush VA@50Hz 65 65 65 65 62 62 62 62
Nominal Inrush VA@60Hz 60 60 60 60 59 59 59 59
Nominal Sealed VA@50Hz 7.5 7.5 7.5 7.5 9 9 9 9

Nominal Sealed VA@60Hz 6 6 6 6 7 7 6 7
Maximum Coil Voltage 30 132 264 300 30 132 264 300
4P40A

>B 036
