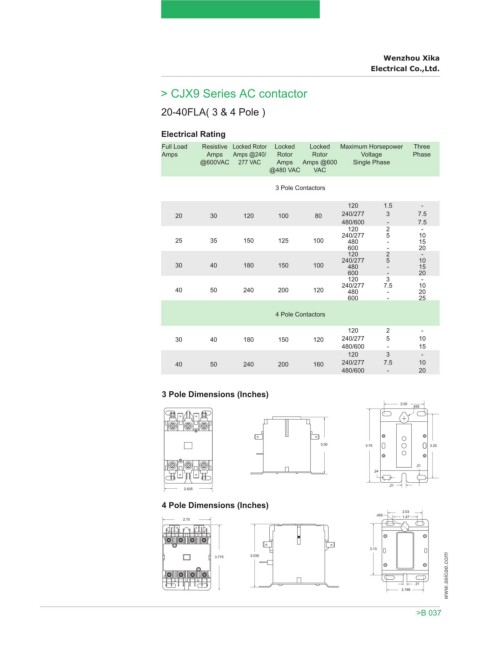

> CJX9 Series AC contactor
20-40FLA( 3 & 4 Pole )
Electrical Rating
Full Load Resistive Locked Rotor Locked Locked Maximum Horsepower Three
Amps Amps Amps @240/ Rotor Rotor Voltage Phase
@600VAC 277 VAC Amps Amps @600 Single Phase
@480 VAC VAC
3 Pole Contactors
120 1.5 -
20 30 120 100 80 240/277 3 7.5
480/600 - 7.5
120 2 -
240/277 5 10
25 35 150 125 100 480 - 15
600 - 20
120 2 -
240/277 5 10
30 40 180 150 100 480 - 15
600 - 20
120 3 -
240/277 7.5 10
40 50 240 200 120 480 - 20
600 - 25
4 Pole Contactors
120 2 -
30 40 180 150 120 240/277 5 10
480/600 - 15
120 3 -
40 50 240 200 160 240/277 7.5 10
480/600 - 20
3 Pole Dimensions (Inches)
4 Pole Dimensions (Inches)
