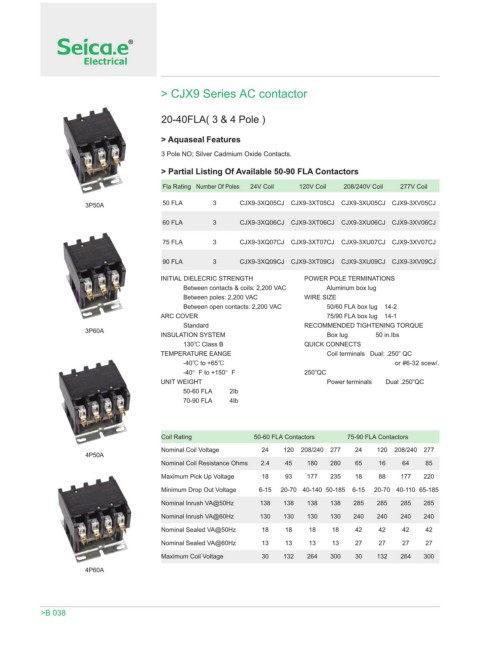

> CJX9 Series AC contactor

20-40FLA( 3 & 4 Pole )

> Aquaseal Features

3 Pole NO; Silver Cadmium Oxide Contacts.
> Partial Listing Of Available 50-90 FLA Contactors

Fla Rating Number Of Poles 24V Coil 120V Coil 208/240V Coil 277V Coil

3P50A 50 FLA 3 CJX9-3XQ05CJ CJX9-3XT05CJ CJX9-3XU05CJ CJX9-3XV05CJ

60 FLA 3 CJX9-3XQ06CJ CJX9-3XT06CJ CJX9-3XU06CJ CJX9-3XV06CJ

75 FLA 3 CJX9-3XQ07CJ CJX9-3XT07CJ CJX9-3XU07CJ CJX9-3XV07CJ

90 FLA 3 CJX9-3XQ09CJ CJX9-3XT09CJ CJX9-3XU09CJ CJX9-3XV09CJ

INITIAL DIELECRIC STRENGTH POWER POLE TERMINATIONS
Between contacts & coils: 2,200 VAC Aluminum box lug
Between poles: 2,200 VAC WIRE SIZE
Between open contacts: 2,200 VAC 50/60 FLA box lug 14-2
ARC COVER 75/90 FLA box lug 14-1
Standard RECOMMENDED TIGHTENING TORQUE
3P60A
INSULATION SYSTEM Box lug 50 in.Ibs
130 Class B QUICK CONNECTS
TEMPERATURE EANGE Coil terminals Dual: .250” QC
-40 to +65 or #6-32 scew/.
-40 F to +150 F 250”QC
UNIT WEIGHT Power terminals Dual .250”QC
50-60 FLA 2Ib
70-90 FLA 4Ib

Coil Rating 50-60 FLA Contactors 75-90 FLA Contactors
Nominal Coil Voltage 24 120 208/240 277 24 120 208/240 277
4P50A
Nominal Coil Resistance Ohms 2.4 45 180 280 65 16 64 85
Maximum Pick Up Voltage 18 93 177 235 18 88 177 220
Minimum Drop Out Voltage 6-15 20-70 40-140 50-185 6-15 20-70 40-110 65-185

Nominal Inrush VA@50Hz 138 138 138 138 285 285 285 285
Nominal Inrush VA@60Hz 130 130 130 130 240 240 240 240
Nominal Sealed VA@50Hz 18 18 18 18 42 42 42 42
Nominal Sealed VA@60Hz 13 13 13 13 27 27 27 27
Maximum Coil Voltage 30 132 264 300 30 132 264 300
4P60A

>B 038
