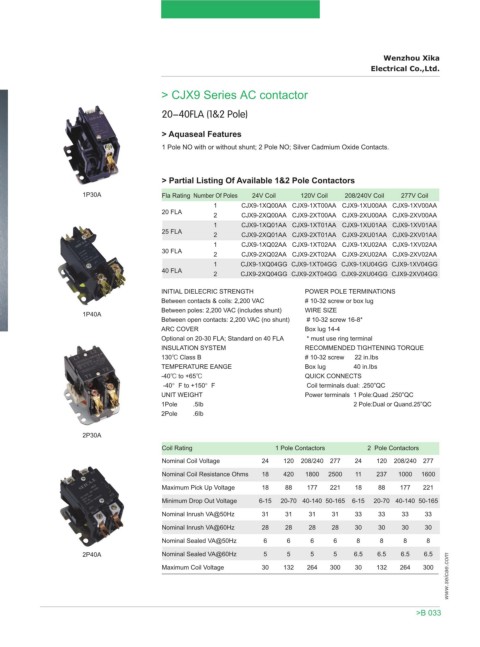

> CJX9 Series AC contactor

OMJQMci^=ENCO=mçäÉF
> Aquaseal Features

1 Pole NO with or without shunt; 2 Pole NO; Silver Cadmium Oxide Contacts.

> Partial Listing Of Available 1&2 Pole Contactors
1P30A Fla Rating Number Of Poles 24V Coil 120V Coil 208/240V Coil 277V Coil
1 CJX9-1XQ00AA CJX9-1XT00AA CJX9-1XU00AA CJX9-1XV00AA
20 FLA 2 CJX9-2XQ00AA CJX9-2XT00AA CJX9-2XU00AA CJX9-2XV00AA
1 CJX9-1XQ01AA CJX9-1XT01AA CJX9-1XU01AA CJX9-1XV01AA
25 FLA 2 CJX9-2XQ01AA CJX9-2XT01AA CJX9-2XU01AA CJX9-2XV01AA
1 CJX9-1XQ02AA CJX9-1XT02AA CJX9-1XU02AA CJX9-1XV02AA
30 FLA 2 CJX9-2XQ02AA CJX9-2XT02AA CJX9-2XU02AA CJX9-2XV02AA
1 CJX9-1XQ04GG CJX9-1XT04GG CJX9-1XU04GG CJX9-1XV04GG
40 FLA 2 CJX9-2XQ04GG CJX9-2XT04GG CJX9-2XU04GG CJX9-2XV04GG

INITIAL DIELECRIC STRENGTH POWER POLE TERMINATIONS
Between contacts & coils: 2,200 VAC # 10-32 screw or box lug
Between poles: 2,200 VAC (includes shunt) WIRE SIZE
1P40A
Between open contacts: 2,200 VAC (no shunt) # 10-32 screw 16-8*
ARC COVER Box lug 14-4
Optional on 20-30 FLA; Standard on 40 FLA * must use ring terminal
INSULATION SYSTEM RECOMMENDED TIGHTENING TORQUE
130 Class B # 10-32 screw 22 in.Ibs
TEMPERATURE EANGE Box lug 40 in.Ibs
-40 to +65 QUICK CONNECTS
-40 F to +150 F Coil terminals dual: .250”QC
UNIT WEIGHT Power terminals 1 Pole:Quad .250”QC
1Pole .5Ib 2 Pole:Dual or Quand.25”QC
2Pole .6Ib

2P30A
Coil Rating 1 Pole Contactors 2 Pole Contactors
Nominal Coil Voltage 24 120 208/240 277 24 120 208/240 277
Nominal Coil Resistance Ohms 18 420 1800 2500 11 237 1000 1600
Maximum Pick Up Voltage 18 88 177 221 18 88 177 221
Minimum Drop Out Voltage 6-15 20-70 40-140 50-165 6-15 20-70 40-140 50-165
Nominal Inrush VA@50Hz 31 31 31 31 33 33 33 33
Nominal Inrush VA@60Hz 28 28 28 28 30 30 30 30

Nominal Sealed VA@50Hz 6 6 6 6 8 8 8 8
2P40A Nominal Sealed VA@60Hz 5 5 5 5 6.5 6.5 6.5 6.5
www.seicae.com
Maximum Coil Voltage 30 132 264 300 30 132 264 300

>B 033
