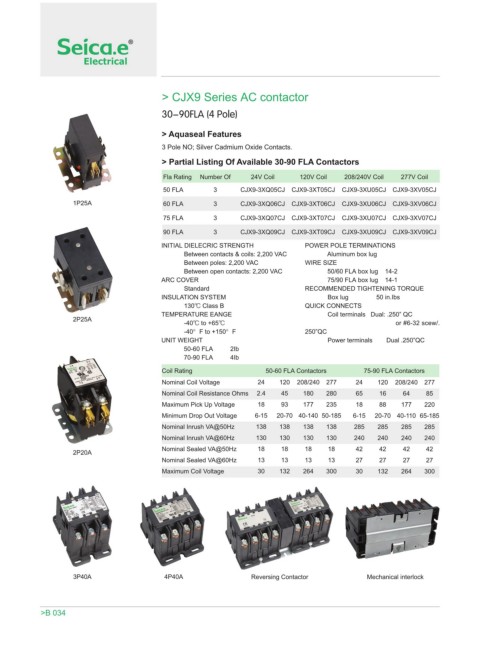

> CJX9 Series AC contactor

PMJVMci^=EQ=mçäÉF
> Aquaseal Features

3 Pole NO; Silver Cadmium Oxide Contacts.
> Partial Listing Of Available 30-90 FLA Contactors

Fla Rating Number Of 24V Coil 120V Coil 208/240V Coil 277V Coil
50 FLA 3 CJX9-3XQ05CJ CJX9-3XT05CJ CJX9-3XU05CJ CJX9-3XV05CJ
1P25A 60 FLA 3 CJX9-3XQ06CJ CJX9-3XT06CJ CJX9-3XU06CJ CJX9-3XV06CJ
75 FLA 3 CJX9-3XQ07CJ CJX9-3XT07CJ CJX9-3XU07CJ CJX9-3XV07CJ
90 FLA 3 CJX9-3XQ09CJ CJX9-3XT09CJ CJX9-3XU09CJ CJX9-3XV09CJ
INITIAL DIELECRIC STRENGTH POWER POLE TERMINATIONS
Between contacts & coils: 2,200 VAC Aluminum box lug
Between poles: 2,200 VAC WIRE SIZE
Between open contacts: 2,200 VAC 50/60 FLA box lug 14-2
ARC COVER 75/90 FLA box lug 14-1
Standard RECOMMENDED TIGHTENING TORQUE
INSULATION SYSTEM Box lug 50 in.Ibs
130 Class B QUICK CONNECTS
TEMPERATURE EANGE Coil terminals Dual: .250” QC
2P25A
-40 to +65 or #6-32 scew/.
-40 F to +150 F 250”QC
UNIT WEIGHT Power terminals Dual .250”QC
50-60 FLA 2Ib
70-90 FLA 4Ib
Coil Rating 50-60 FLA Contactors 75-90 FLA Contactors
Nominal Coil Voltage 24 120 208/240 277 24 120 208/240 277
Nominal Coil Resistance Ohms 2.4 45 180 280 65 16 64 85
Maximum Pick Up Voltage 18 93 177 235 18 88 177 220
Minimum Drop Out Voltage 6-15 20-70 40-140 50-185 6-15 20-70 40-110 65-185
Nominal Inrush VA@50Hz 138 138 138 138 285 285 285 285
Nominal Inrush VA@60Hz 130 130 130 130 240 240 240 240
Nominal Sealed VA@50Hz 18 18 18 18 42 42 42 42
2P20A
Nominal Sealed VA@60Hz 13 13 13 13 27 27 27 27
Maximum Coil Voltage 30 132 264 300 30 132 264 300

3P40A 4P40A Reversing Contactor Mechanical interlock

>B 034
