Wenzhou Xika
Electrical Co.,Ltd.

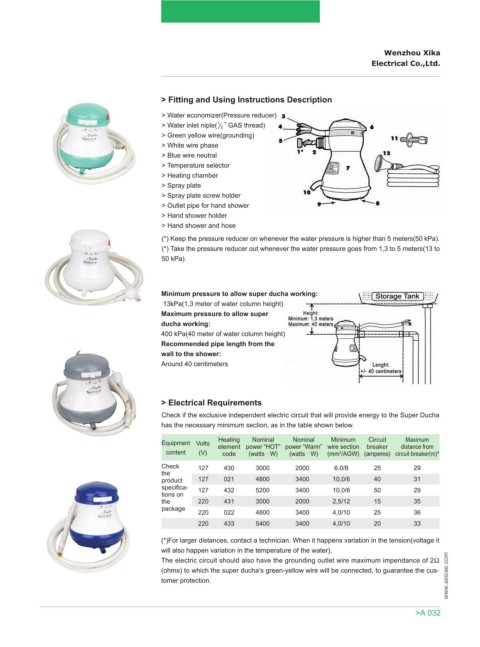

> Fitting and Using Instructions Description

> Water economizer(Pressure reducer)
1
”
> Water inlet niple( GAS thread)
2
> Green yellow wire(grounding)
> White wire phase
> Blue wire neutral
> Temperature selector
> Heating chamber
> Spray plate
> Spray plate screw holder
> Outlet pipe for hand shower
> Hand shower holder
> Hand shower and hose
(*) Keep the pressure reducer on whenever the water pressure is higher than 5 meters(50 kPa).
(*) Take the pressure reducer out whenever the water pressure goes from 1,3 to 5 meters(13 to
50 kPa).

Minimum pressure to allow super ducha working:
13kPa(1,3 meter of water column height)
Maximum pressure to allow super
ducha working:
400 kPa(40 meter of water column height)
Recommended pipe length from the
wall to the shower:
Around 40 centimeters

> Electrical Requirements

Check if the exclusive independent electric circuit that will provide energy to the Super Ducha
has the necessary minimum section, as in the table shown below.

Heating Nominal Nominal Minimum Circuit Maximum
Equipment Volts
element power “HOT” power “Warm” wire section breaker distance from
content (V) code (watts W) (watts W) (mm /AGW) (amperes) circuit breaker(m)*
2
Check 127 430 3000 2000 6,0/8 25 29
the
product 127 021 4800 3400 10,0/6 40 31
specifica- 127 432 5200 3400 10,0/6 50 29
tions on
the 220 431 3000 2000 2,5/12 15 35
package
220 022 4800 3400 4,0/10 25 36
220 433 5400 3400 4,0/10 20 33

(*)For larger distances, contact a technician. When it happens variation in the tension(voltage it
will also happen variation in the temperature of the water).
www.seicae.com
The electric circuit should also have the grounding outlet wire maximum impendance of 2Ω
(ohms) to which the super ducha’s green-yellow wire will be connected, to guarantee the cus-
tomer protection.
