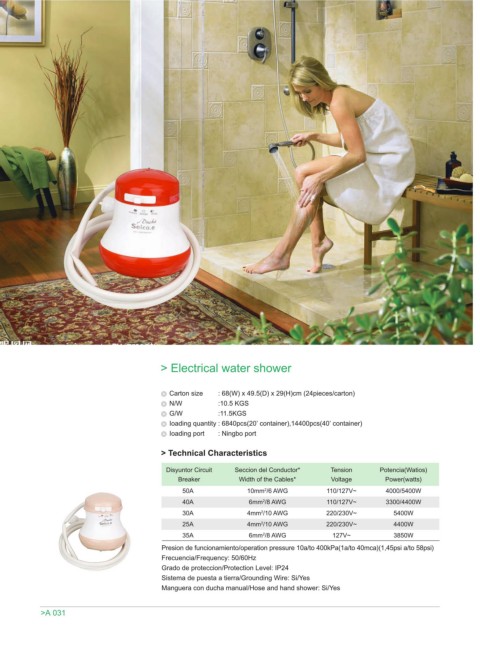

> Electrical water shower



                                           =Carton size  : 68(W) x 49.5(D) x 29(H)cm (24pieces/carton)
                                           =N/W          :10.5 KGS
                                           =G/W          :11.5KGS
                                           =Ioading quantity : 6840pcs(20’ container),14400pcs(40’ container)
                                           =Ioading port  : Ningbo port

                                          > Technical Characteristics

                                           Disyuntor Circuit  Seccion del Conductor*  Tension     Potencia(Watios)
                                              Breaker         Width of the Cables*    Voltage      Power(watts)
                                                50A             10mm /6 AWG         110/127V~       4000/5400W
                                                                    2
                                                                    2
                                                40A              6mm /8 AWG         110/127V~       3300/4400W
                                                                    2
                                                30A             4mm /10 AWG         220/230V~        5400W
                                                                    2
                                                25A             4mm /10 AWG         220/230V~        4400W
                                                35A              6mm /8 AWG           127V~          3850W
                                                                    2
                                          Presion de funcionamiento/operation pressure 10a/to 400kPa(1a/to 40mca)(1,45psi a/to 58psi)
                                          Frecuencia/Frequency: 50/60Hz
                                          Grado de proteccion/Protection Level: IP24
                                          Sistema de puesta a tierra/Grounding Wire: Si/Yes
                                          Manguera con ducha manual/Hose and hand shower: Si/Yes


           >A 031
