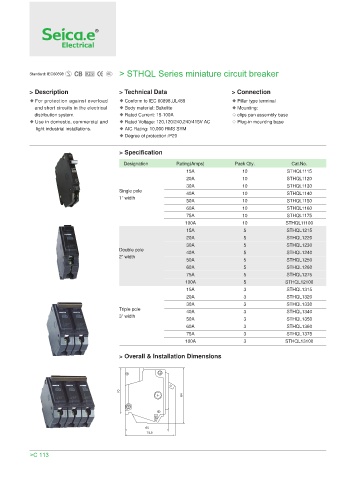

Page 122 - 温州西卡电器有限公司（WENZHOU XIKA ELECTRICAL CO.,LTD.）

> STHQL Series miniature circuit breaker
Standard: IEC60898

> Description > Technical Data > Connection
For protection against overload Conform to IEC 60898,UL489 Pillar type terminal
and short circuits in the electrical Body material: Bakelite Mounting:
distribution system. Rated Current: 15-100A clips pan assembly base
Use in domestic, commercial and Rated Voltage: 120,120/240,240/415V AC Plug-in mounting base
light industrial installations. AIC Rating: 10,000 RMS SYM
Degree of protection:IP20

> Specification
Designation Rating(Amps) Pack Qty. Cat.No.
15A 10 STHQL1115
20A 10 STHQL1120
30A 10 STHQL1130
Single pole 40A 10 STHQL1140
1” width
50A 10 STHQL1150
60A 10 STHQL1160
75A 10 STHQL1175
100A 10 STHQL11100
15A 5 STHQL1215
20A 5 STHQL1220
30A 5 STHQL1230
Double pole 40A 5 STHQL1240
2” width
50A 5 STHQL1250
60A 5 STHQL1260
75A 5 STHQL1275
100A 5 STHQL12100
15A 3 STHQL1315
20A 3 STHQL1320
30A 3 STHQL1330
Triple pole 40A 3 STHQL1340
3” width
50A 3 STHQL1350
60A 3 STHQL1360
75A 3 STHQL1375
100A 3 STHQL13100

> Overall & Installation Dimensions

>C 113
