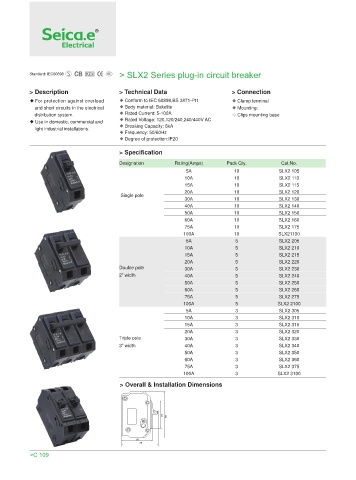

> SLX2 Series plug-in circuit breaker
Standard: IEC60898

> Description > Technical Data > Connection
For protection against overload Conform to IEC 60898,BS 3871-Pt1 Clamp terminal
and short circuits in the electrical Body material: Bakelite Mounting:
distribution system. Rated Current: 5-100A Clips mounting base
Use in domestic, commercial and Rated Voltage: 120,120/240,240/440V AC
light industrial installations. Breaking Capacity: 6kA
Frequency: 50/60Hz
Degree of protection:IP20

> Specification
Designation Rating(Amps) Pack Qty. Cat.No.
5A 10 SLX2 105
10A 10 SLX2 110
15A 10 SLX2 115
20A 10 SLX2 120
Single pole
30A 10 SLX2 130
40A 10 SLX2 140
50A 10 SLX2 150
60A 10 SLX2 160
75A 10 SLX2 175
100A 10 SLX21100
5A 5 SLX2 205
10A 5 SLX2 210
15A 5 SLX2 215
20A 5 SLX2 220
Double pole 30A 5 SLX2 230
2” width 40A 5 SLX2 240
50A 5 SLX2 250
60A 5 SLX2 260
75A 5 SLX2 275
100A 5 SLX2 2100
5A 3 SLX2 305
10A 3 SLX2 310
15A 3 SLX2 315
20A 3 SLX2 320
Triple pole 30A 3 SLX2 330
3” width 40A 3 SLX2 340
50A 3 SLX2 350
60A 3 SLX2 360
75A 3 SLX2 375
100A 3 SLX2 3100
> Overall & Installation Dimensions

>C 109
