Wenzhou Xika
Electrical Co.,Ltd.

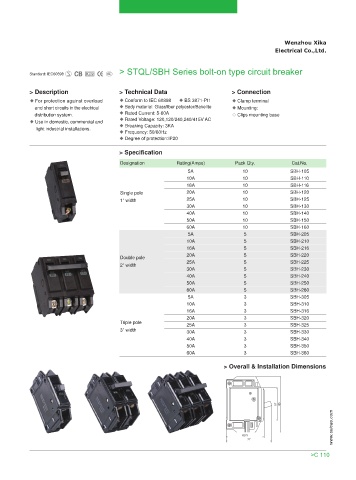

> STQL/SBH Series bolt-on type circuit breaker
Standard: IEC60898

> Description > Technical Data > Connection
For protection against overload Conform to IEC 60898 BS 3871-Pt1 Clamp terminal
and short circuits in the electrical Body material: Glassfiber polyester/Bakelite Mounting:
distribution system. Rated Current: 5-60A Clips mounting base
Use in domestic, commercial and Rated Voltage: 120,120/240,240/415V AC
light industrial installations. Breaking Capacity: 3KA
Frequency: 50/60Hz
Degree of protection:IP20

> Specification
Designation Rating(Amps) Pack Qty. Cat.No.
5A 10 SBH-105
10A 10 SBH-110
16A 10 SBH-116
Single pole 20A 10 SBH-120
1” width 25A 10 SBH-125
30A 10 SBH-130
40A 10 SBH-140
50A 10 SBH-150
60A 10 SBH-160
5A 5 SBH-205
10A 5 SBH-210
16A 5 SBH-216
Double pole 20A 5 SBH-220
2” width 25A 5 SBH-225
30A 5 SBH-230
40A 5 SBH-240
50A 5 SBH-250
60A 5 SBH-260
5A 3 SBH-305
10A 3 SBH-310
16A 3 SBH-316
20A 3 SBH-320
Triple pole 25A 3 SBH-325
3” width 30A 3 SBH-330
40A 3 SBH-340
50A 3 SBH-350
60A 3 SBH-360

> Overall & Installation Dimensions

www.seicae.com

>C 110
