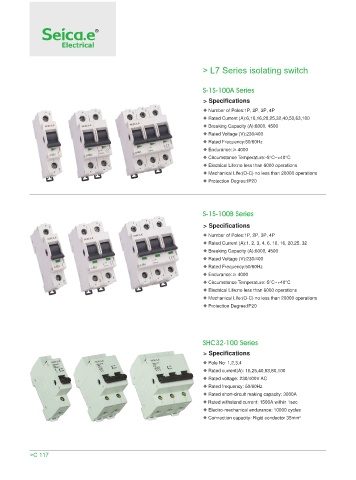

> L7 Series isolating switch

S-1S-100A Series
> Specifications
Number of Poles:1P, 2P, 3P, 4P
Rated Current (A):6,10,16,20,25,32,40,50,63,100
Breaking Capacity (A):6000, 4500
Rated Voltage (V):230/400
Rated Frequency:50/60Hz
Endurance: 4000
Circumstance Temperature:-5°C~+40°C
Electrical Life:no less than 6000 operations
Mechanical Life:(O-C) no less than 20000 operations
Protection Degree:IP20

S-1S-100B Series

> Specifications
Number of Poles:1P, 2P, 3P, 4P
Rated Current (A):1, 2, 3, 4, 6, 10, 16, 20,25, 32
Breaking Capacity (A):6000, 4500
Rated Voltage (V):230/400
Rated Frequency:50/60Hz
Endurance: 4000
Circumstance Temperature:-5°C~+40°C
Electrical Life:no less than 6000 operations
Mechanical Life:(O-C) no less than 20000 operations
Protection Degree:IP20

SHC32-100 Series
> Specifications
Pole No: 1,2,3,4
Rated current(A): 16,25,40,63,80,100
Rated voltage: 230/400V AC
Rated frequency: 50/60Hz
Rated short-circuit making capacity: 3000A
Rated withstand current: 1500A within 1sec
Electro-mechanical endurance: 10000 cycles
Connection capacity: Rigid conductor 35mm 2
