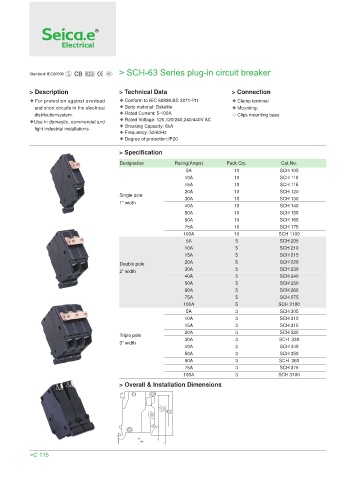

> SCH-63 Series plug-in circuit breaker
Standard: IEC60898

> Description > Technical Data > Connection
For protection against overload Conform to IEC 60898,BS 3871-Pt1 Clamp terminal
and short circuits in the electrical Body material: Bakelite Mounting:
distributionsystem. Rated Current: 5-100A Clips mounting base
Use in domestic, commercial and Rated Voltage: 120,120/240,240/440V AC
light industrial installations. Breaking Capacity: 6kA
Frequency: 50/60Hz
Degree of protection:IP20

> Specification
Designation Rating(Amps) Pack Qty. Cat.No.
5A 10 SCH 105
10A 10 SCH 110
15A 10 SCH 115
20A 10 SCH 120
Single pole 30A 10 SCH 130
1” width
40A 10 SCH 140
50A 10 SCH 150
60A 10 SCH 160
75A 10 SCH 175
100A 10 SCH 1100
5A 5 SCH 205
10A 5 SCH 210
15A 5 SCH 215
Double pole 20A 5 SCH 220
2” width 30A 5 SCH 230
40A 5 SCH 240
50A 5 SCH 250
60A 5 SCH 260
75A 5 SCH 275
100A 5 SCH 2100
5A 3 SCH 305
10A 3 SCH 310
15A 3 SCH 315
20A 3 SCH 320
Triple pole
3” width 30A 3 SCH 330
40A 3 SCH 340
50A 3 SCH 350
60A 3 SCH 360
75A 3 SCH 375
100A 3 SCH 3100
> Overall & Installation Dimensions

>C 115
